Description
Specializes in aviation engine/high-speed rail wheel set cladding dust purification!

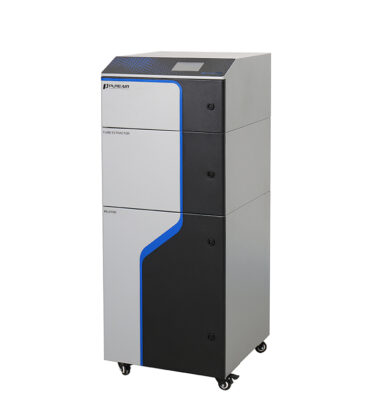

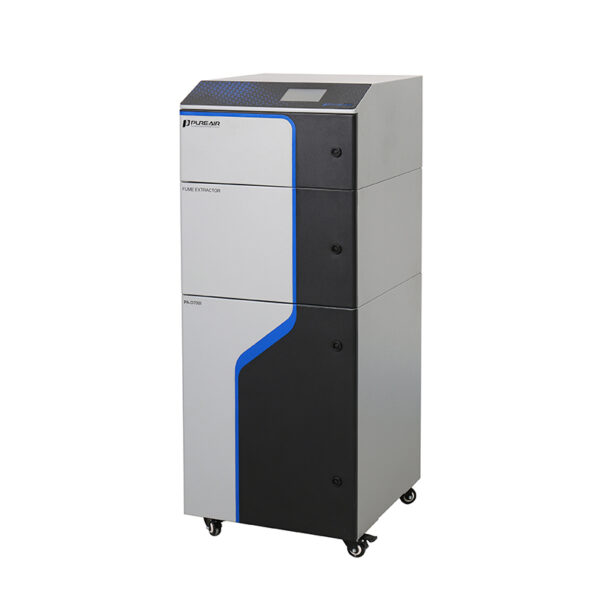

[PURE-AIR] dust purification equipment uses 10KPa vortex negative pressure + composite filter element, 0.3 micron cobalt-based alloy dust interception rate of 99.99%, cracks the pain point of high-temperature cladding dust adhesion, and directly discharges to meet the standard!
Key features
- Cladding smoke purification system

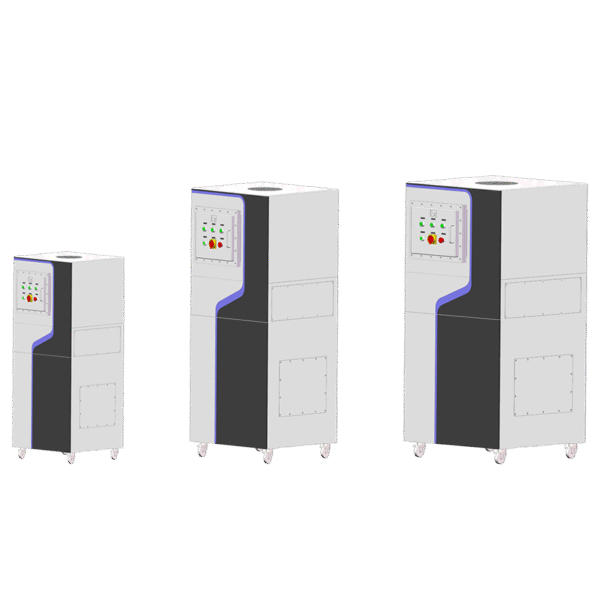

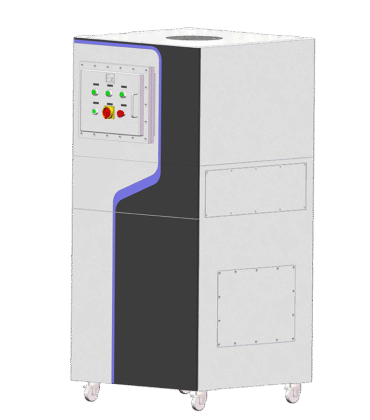

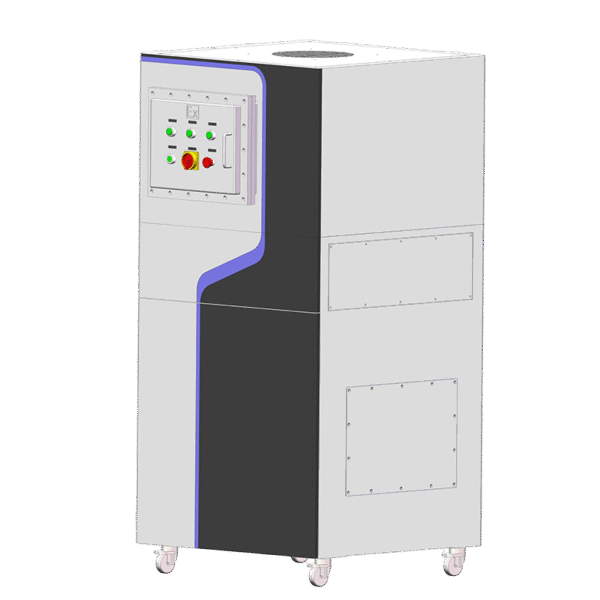

- Multiple filter matrix: optional high temperature resistant/explosion-proof/anti-static models, specially for turbine blade repair smoke
- Pulse cleaning: high-efficiency pulse vibration stripping smoke, 200% more efficient than traditional
- Production line invisibility
- Ultra-small body structure saves 40% space, embedded adaptation mobile cladding workstation
- Universal casters with brakes + quick lock interface, 7 seconds to switch high-speed rail/wind power maintenance scenes
- Smart purification center
- 7-inch full-color touch screen: real-time tracking of PM1.0/heavy metal/ozone data, direct connection to digital platform
- AI dynamic air volume compensation: intelligent identification of equipment status, 10-18KPa negative pressure millisecond response
- RS-485 protocol: seamless access to the Industrial 4.0 system, purification efficiency synchronization process iteration
Table parameters：
| Application conditions | Processing materials | Laser Cladding: Alloy Materials. | ||
| Working format | Small workpiece / Narrow Spaces | |||

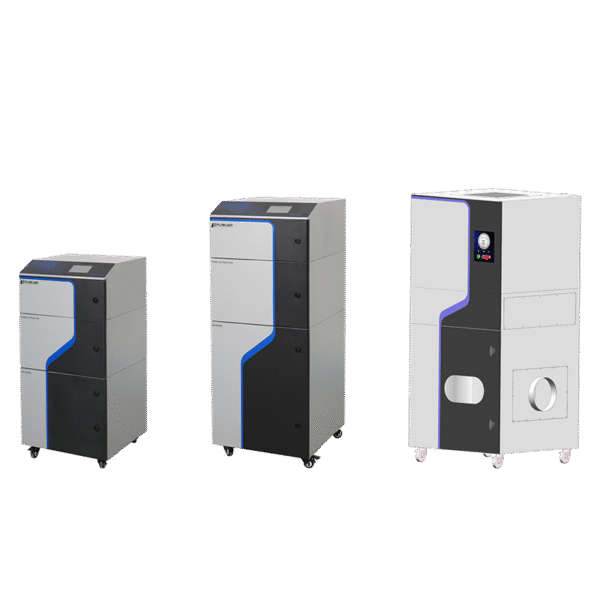

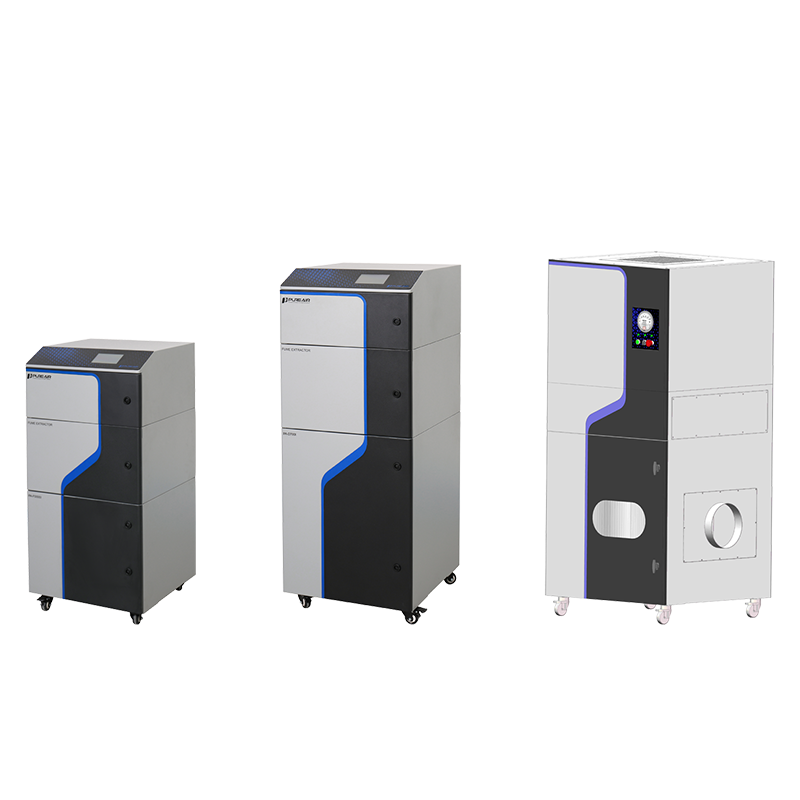

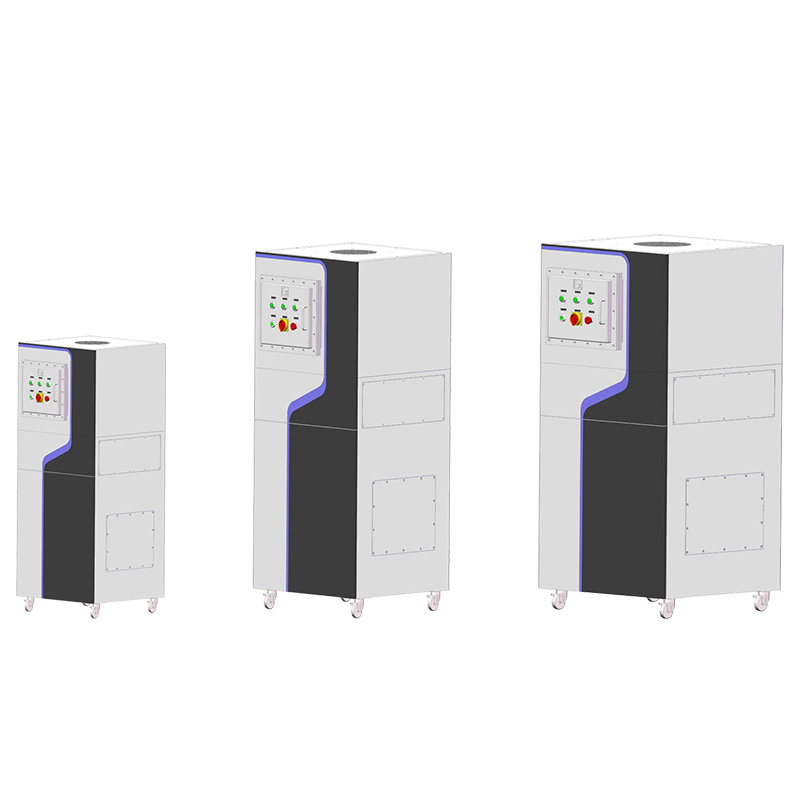

| Model | PA-D800i | PA-D1600i | PA-D2400i | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||
| Filter | Pre filter | Flame retardant PTFE cartridge filter | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Noise level * | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1296mm | 670*794*1570mm | 750*907*1564mm | |
| Weight | 86kg | 180kg | 200kg | |

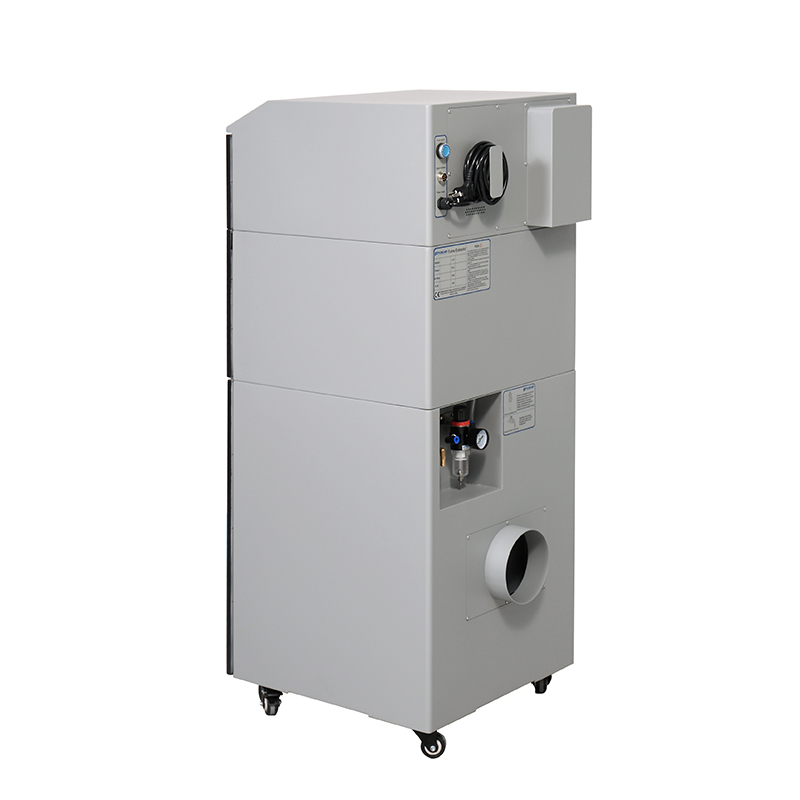

| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
* At typical operating speed testing data.
