Description
Specializes in carbon steel/stainless steel/copper cutting smoke purification!

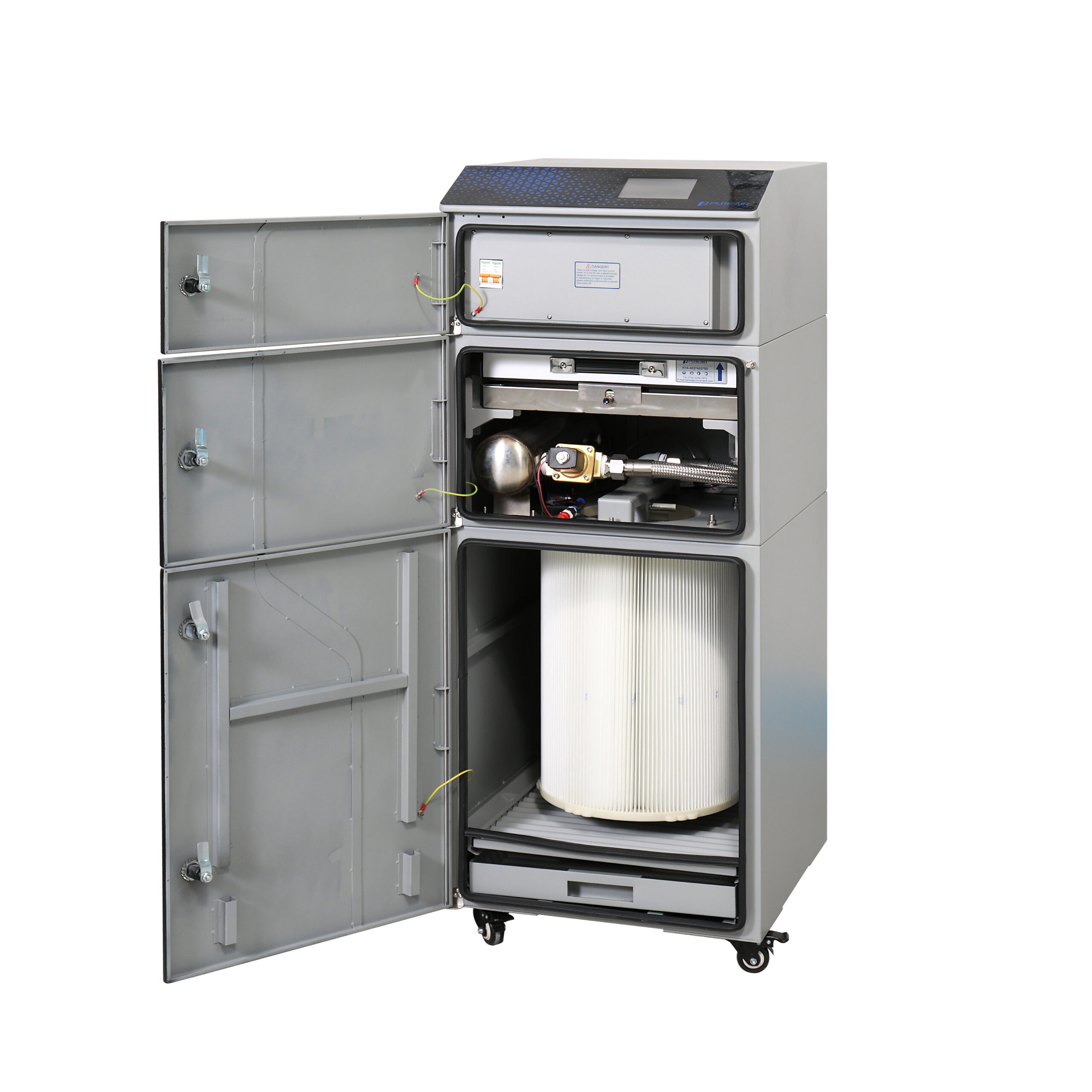

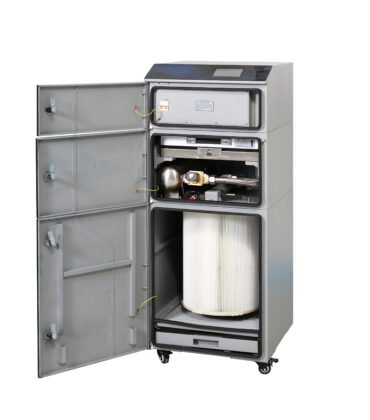

[PURE-AIR]Welding Fume Extractor is equipped with 3-10KPa high negative pressure + anti-static flame retardant filter system, 0.3 micron metal dust interception rate of 99.99%, solving the problem of conductive dust accumulation, workshop direct discharge meets the standard!
Key features
- Spark interception and separation technology
- The pre-separation chamber preferentially captures 80% of large-particle metal debris and sparks to reduce the load on the filter element.

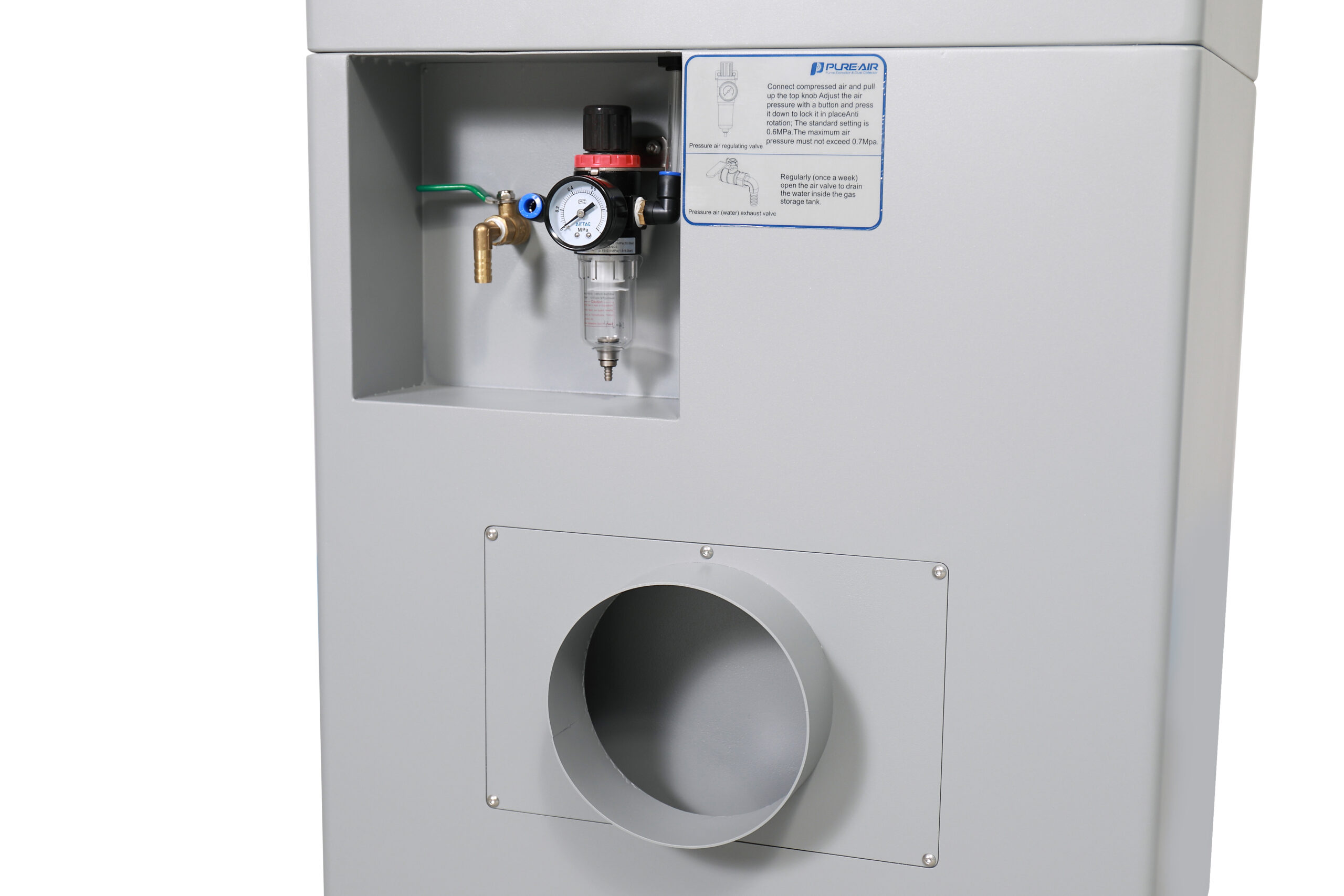

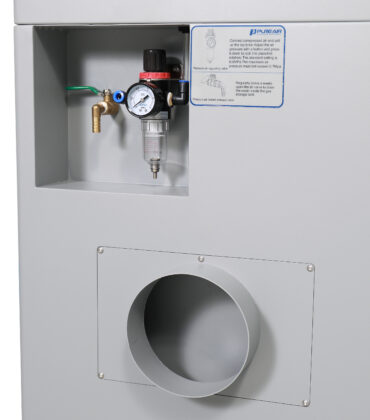

- The patented pulse backflush system automatically cleans the dust, and the efficiency is increased by 300% compared with the traditional method.
- High-efficiency purification performance
- Hurricane-level suction: 0.3 seconds to clear the suspended metal dust in the cutting area.
- Anti-static flame-retardant filter element, reducing the risk of smoke and dust explosion.
- Intelligent system
Intelligent control and maintenance revolution
- Filter element blockage warning and automatic cleaning system: filter element blockage can be warned and automatically cleaned.
- Hard-core advantages
- Heavy-duty universal casters, 10 seconds to complete cross-work displacement machine.
- Brushless motor, 30,000 hours maintenance-free, suitable for 24/7 continuous production.
- Modular quick-disassembly design, reducing the cost of core replacement by 60% and the maintenance time by 80%.
Table Parameters：
| Application conditions | Processing materials | Laser cutting: Carbon steel, stainless steel, galvanized sheet and other materials. | ||
| Working format | 900*130cm | 100*160cm | 100*200cm | |
| Model | PA-D800i | PA-D1600i | PA-D2400i | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||
| Filter | Pre filter | Flame retardant PTFE cartridge filter | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Noise level * | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1296mm | 670*794*1570mm | 750*907*1564mm | |
| Weight | 86kg | 180kg | 200kg | |
| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
| * At typical operating speed testing data. | ||||
