Description
Specializes in smoke purification for photovoltaic panels/PCB/ceramic precision processing!

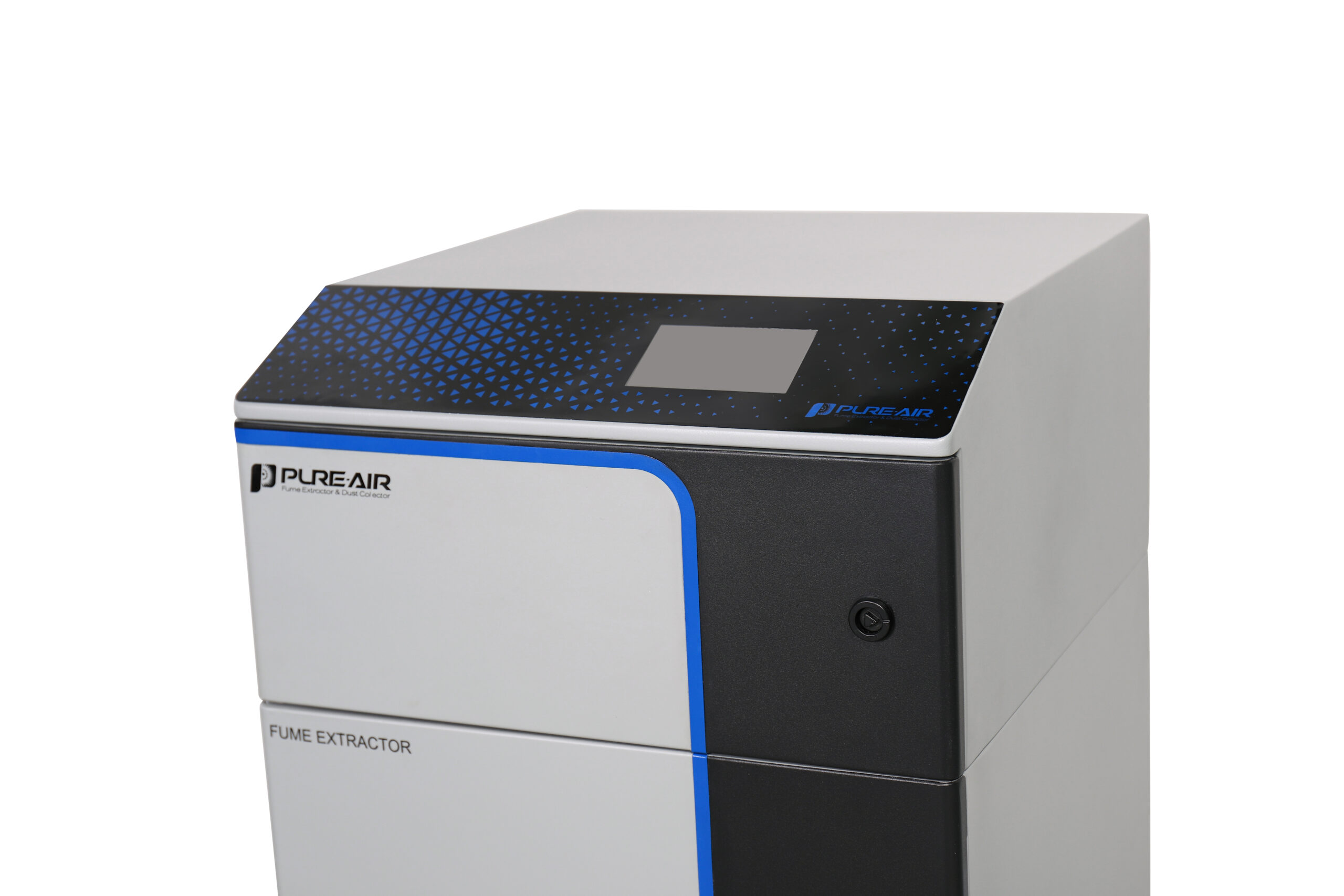

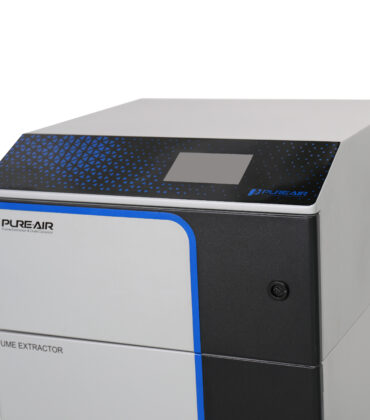

[PURE-AIR] Laser smoke purification equipment is equipped with -12000Pa negative pressure + multi-stage high-precision filter element, 0.3 micron silicon dust/fluoride filtration efficiency is 99.99%, eliminating invisible pollution from photovoltaic panel scribing and glass etching, and clean air is directly discharged to meet precision workshop standards!
Key features
- Nano-level filter element
purification technology
- PTFE nano-film filter element: intercept silicon crystal fragments, ceramic micropowder, anti-static and non-adhesive
- Catalytic oxidation layer: decompose highly toxic gases such as hydrogen fluoride and ammonia produced by etching
- Precision intelligent
control system
- 5-inch industrial touch screen: real-time display of PM0.3/VOC/temperature and humidity, data docking with dust-free workshop management system
- Air volume adjustment (200-1500m³/h), suitable for photovoltaic panel micro-engraving/ceramic deep hole processing
Warning mechanism: filter element life warning + equipment failure sound and light alarm
- Zero-contact
maintenance revolution
- Ultra-efficient pulse cleaning: automatic cleaning of filter element, 350% higher efficiency than traditional
- Quick-disassembly anti-pollution structure: closed operation during core replacement to avoid secondary pollution risks
- Military-grade brushless motor: 30,000 hours maintenance-free, low noise
Table parameters：
| Model | PA-D200 | PA-D250 | PA-D350 | PA-D500 | PA-D800 | PA-D1600 | PA-D2400 | |
| Airflow | 200m³/hr | 250m³/hr | 350m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 2200Pa | 2700Pa | 3700Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 0.15kw | 0.2kw | 0.35kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||||
| Filter | Pre filter | F9 accordion filter bag (95%@0.9um) | Flame retardant PTFE cartridge filter | |||||
| Main filter | / | H14 deeppleat filter (99.997% @0.3um) | ||||||
| Noise level * | < 55dBA | < 55dBA | < 60dBA | < 65dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 250*330*388mm | 520*360*555mm | 500*597*1296mm | 670*794*1570mm | 750*907*1564mm | |||
| Weight | 10kg | 22kg | 23.5kg | 25kg | 86kg | 180kg | 200kg | |
| Inlet size | 50mm / 75mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |||
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||||
* At typical operating speed testing data.
