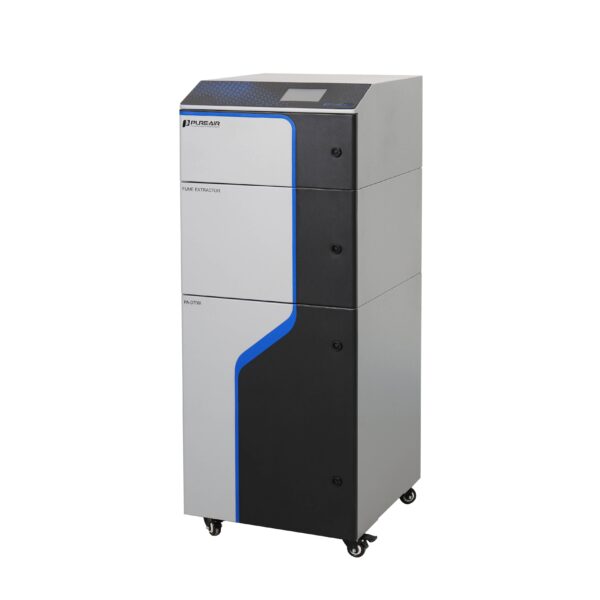

D Series Laser Cutting Metal Fume Extractor
D Series Laser Cutting Metal Fume Extractor

PURE-AIR D

PURE-AIR’s D Series Laser Cutting Metal Fume Extractor offers a complete solution for metal smoke and dust removal. It combines spark separation, hurricane suction, and intelligent filter control for enhanced safety and efficiency. The system ensures 99.99% purification with anti-static filters and supports 24/7 industrial production.

Category: Tags: , ,
ENQUIRY!

Description

Total Metal Fume Extraction for Laser Cutting

The D Series laser cutting metal fume extractor delivers strong suction and high-precision filtration for carbon steel, stainless steel, and copper cutting fumes. Designed for continuous heavy-duty use, it eliminates harmful suspended particles in 0.3 seconds. It solves dust buildup risks with a 99.99% interception rate for 0.3μm metal particles. Built-in spark separation chambers stop large debris and sparks before they reach the filter. The system operates safely and ensures workshop emissions meet discharge standards. With advanced backflush cleaning and modular design, maintenance time and costs drop significantly. Whether for copper etching, thick carbon steel cutting, or stainless steel trimming, this extractor keeps your production line clean and compliant.

Key features

  • Dust Free Metal Tech

Metal dust termination solution

  • Spark interception and separation technology

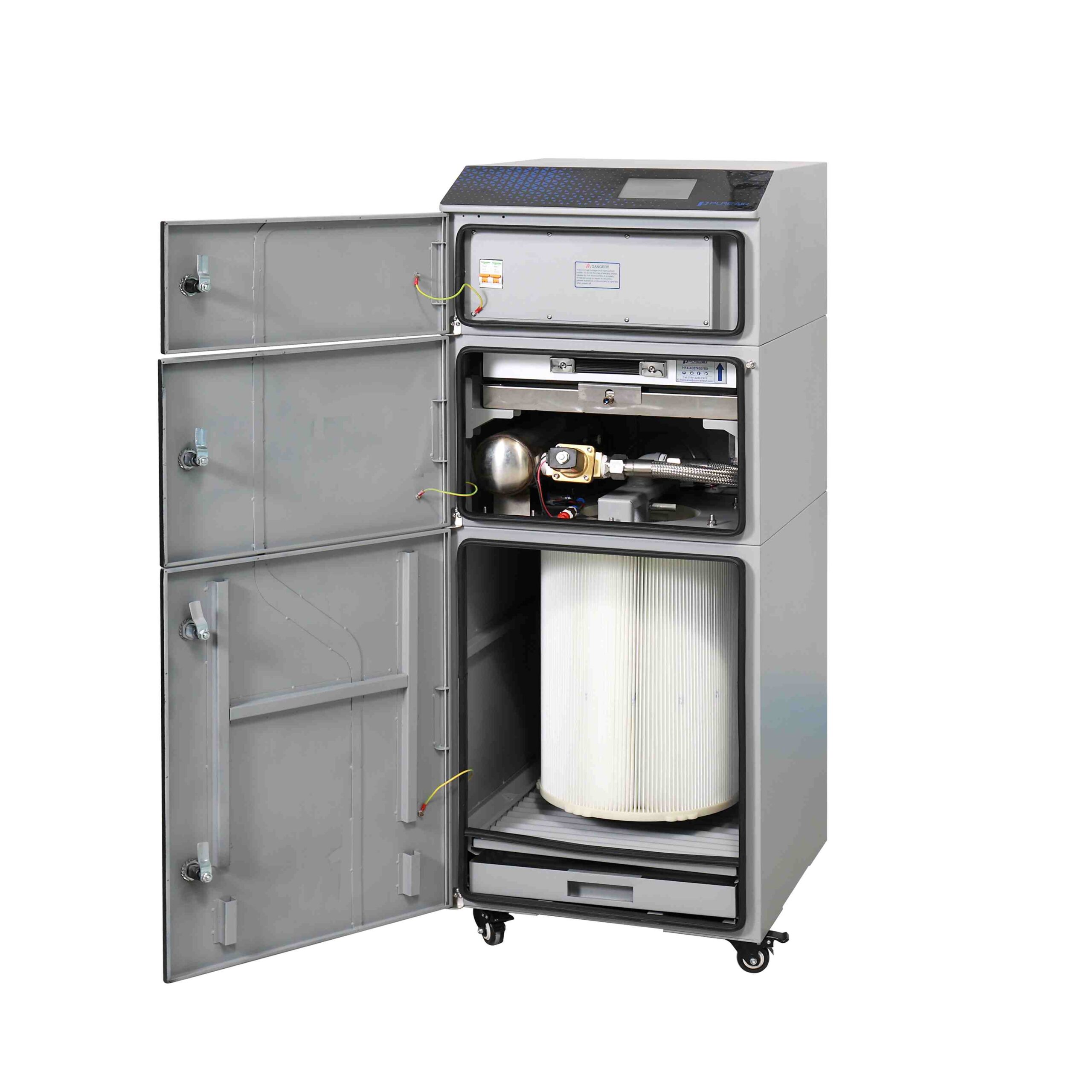

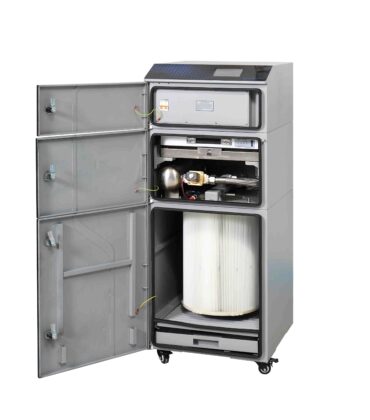

  •  The pre-separation chamber preferentially captures 80% of large-particle metal debris and sparks to reduce the load on the filter element

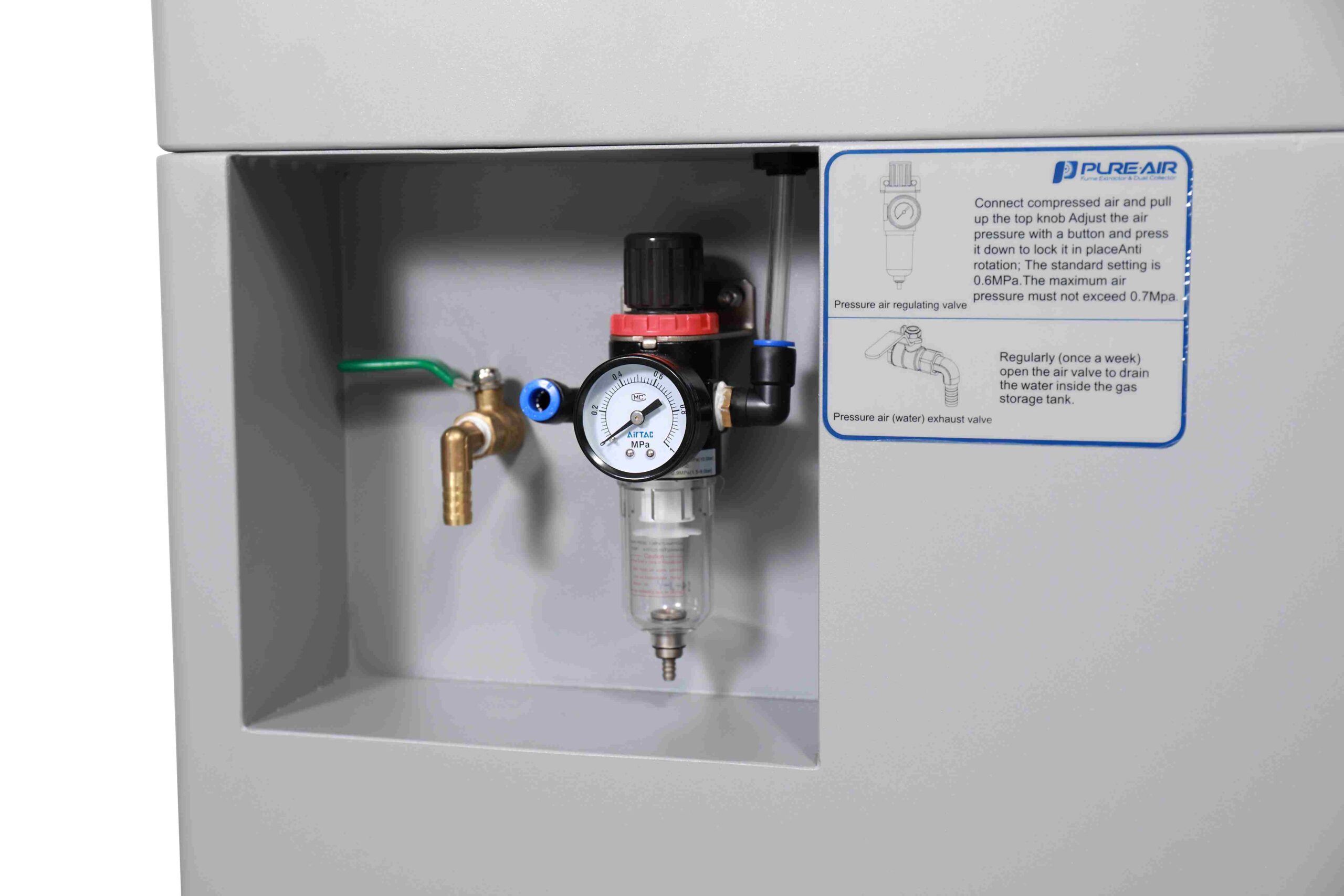

  • The patented pulse backflush system automatically cleans the dust, and the efficiency is increased by 300% compared with the traditional method
  • Max Purify Power

High-efficiency purification performance

  • Hurricane-level suction: 0.3 seconds to clear the suspended metal dust in the cutting area
  • Anti-static flame-retardant filter element, reducing the risk of smoke and dust explosion
  • Intelligent Control

Intelligent control and maintenance revolution

  • Filter element blockage warning and automatic cleaning system: filter element blockage can be warned and automatically cleaned
  • Hard-core advantages

Hard-core advantages

  • Heavy-duty universal casters, 10 seconds to complete cross-work displacement machine
  • Brushless motor, 30,000 hours maintenance-free, suitable for 24/7 continuous production
  • Modular quick-disassembly design, reducing the cost of core replacement by 60% and the maintenance time by 80%

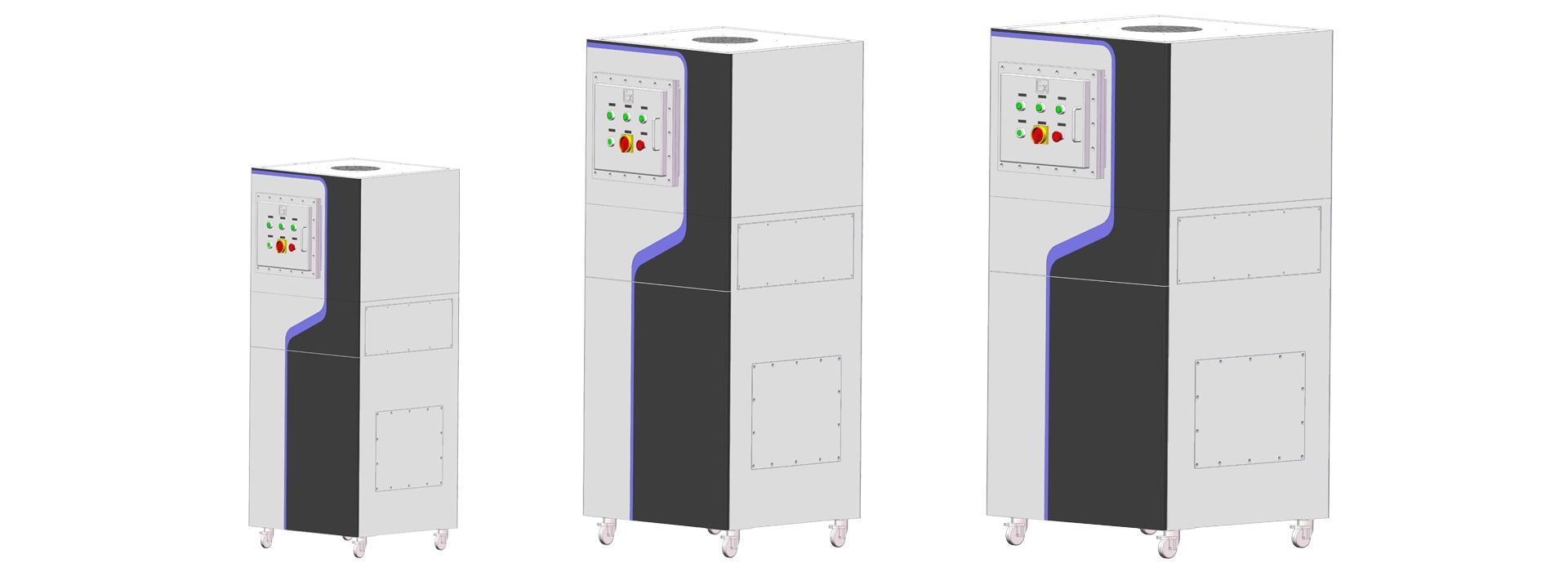

Overall design: [Smart Manufacturing, Space Revolution] --- Subvert tradition and reduce space occupancy by 40%!

Table parameters：

Application conditions Processing materials Laser cutting: Carbon steel, stainless steel, galvanized sheet and other materials.
Working format 900*130cm 100*160cm 100*200cm 130*250cm 200*400cm 200*600cm 400*800cm
Model  PA-D800 PA-D1600 PA-D2400 PA-D5000 PA-D6000 PA-D10000 PA-D12000
Airflow  800m³/hr  1600m³/hr  2400m³/hr  5000m³/hr  6000m³/hr  10000m³/hr  12000m³/hr
Pressure 10000Pa 10000Pa 10000Pa 3200Pa 3500Pa 3200Pa 3500Pa
Rated power 1.3kw 2.3kw 2.3kw 5.5kw 7.5kw 10.0kw 15.0kw
Input voltage / Frequency 90v-110v / 210-257v, 1ph, 50/60Hz 220v/ 380v / 415v / 440v, 3ph, 50/60Hz
Filter Pre filter Flame retardant PTFE cartridge filter PTFE cartridge filter / Flame retardant PTFE cartridge filter (Optional)
Main filter H14 deeppleat filter (99.997% @0.3um) Treated activated carbon (Optional)
Noise level * < 63dBA < 65dBA < 68dBA < 75dBA < 78dBA < 80dBA < 85dBA
Dimensions (W*D*H) 500*597*1296mm 670*794*1570mm  750*907*1564mm 950*903*2015mm 1390*952*2086mm 1900*951*2112mm
Weight 86kg 180kg  200kg 260kg 600kg 750kg 850kg

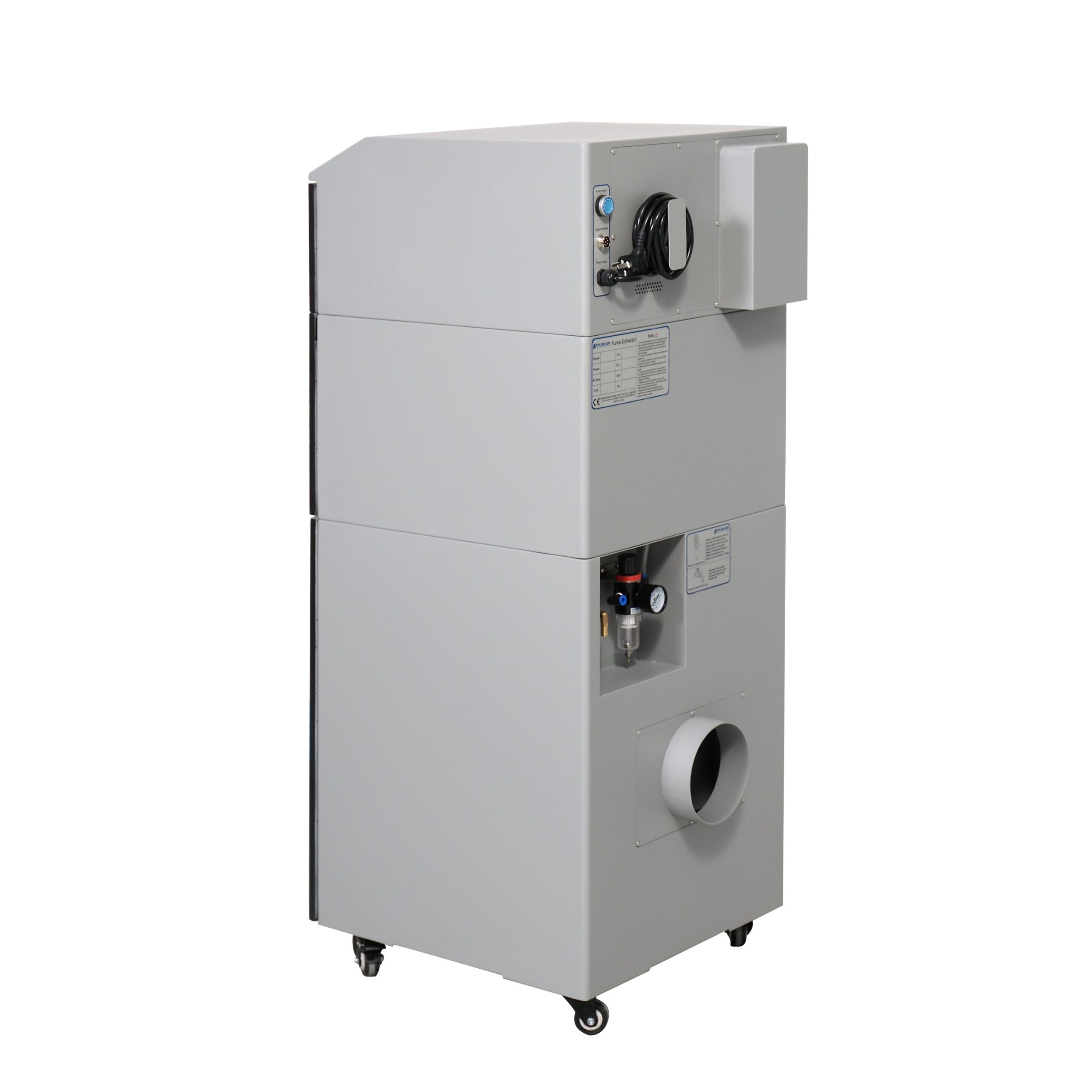

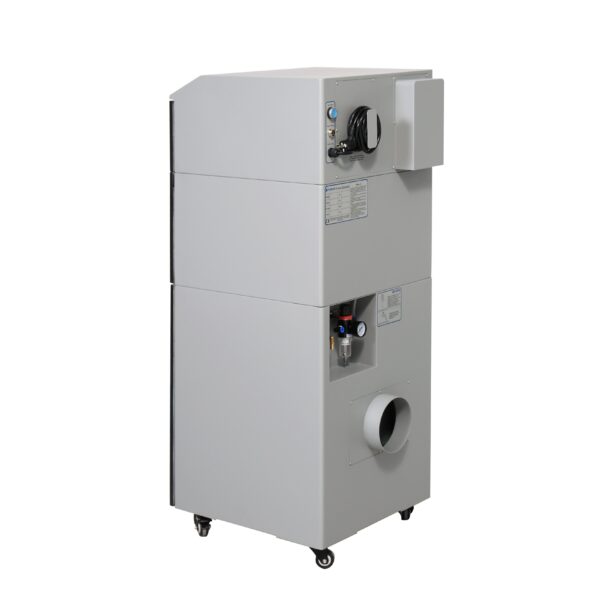

Inlet size 100mm / 125mm 150mm 200mm 250mm 300mm 350mm 400mm
Cabinet construction Powder coated mild steel / Brushed stainless steel

* At typical operating speed testing data.
