Description
Specialized to treat carbon steel/stainless steel/copper cutting smoke!
[PURE-AIR] Welding Fume Extractor system uses 18KPa hurricane negative pressure + high-precision purification system, 0.3 micron metal dust interception rate of 99.99%, solves explosion hazards, and directly discharges to international standards!
- Rich filter cartridge matrix
- 6 types of customized filter elements: optional anti-static/flame retardant/moisture-resistant models, suitable for carbon steel/stainless steel/copper/galvanized plate and other working conditions.
- Pre-separation cabin: captures 85% of large-particle metal chips and sparks, and extends the filter element life by 60%.
- Space reconstruction master
- The ultra-small body saves 40% of space, compatible with automobile welding/aerospace precision workshop layout.
- Universal casters + quick-connect ports, complete cross-production line migration in 15 seconds.
- Intelligent system
Intelligent control purification center

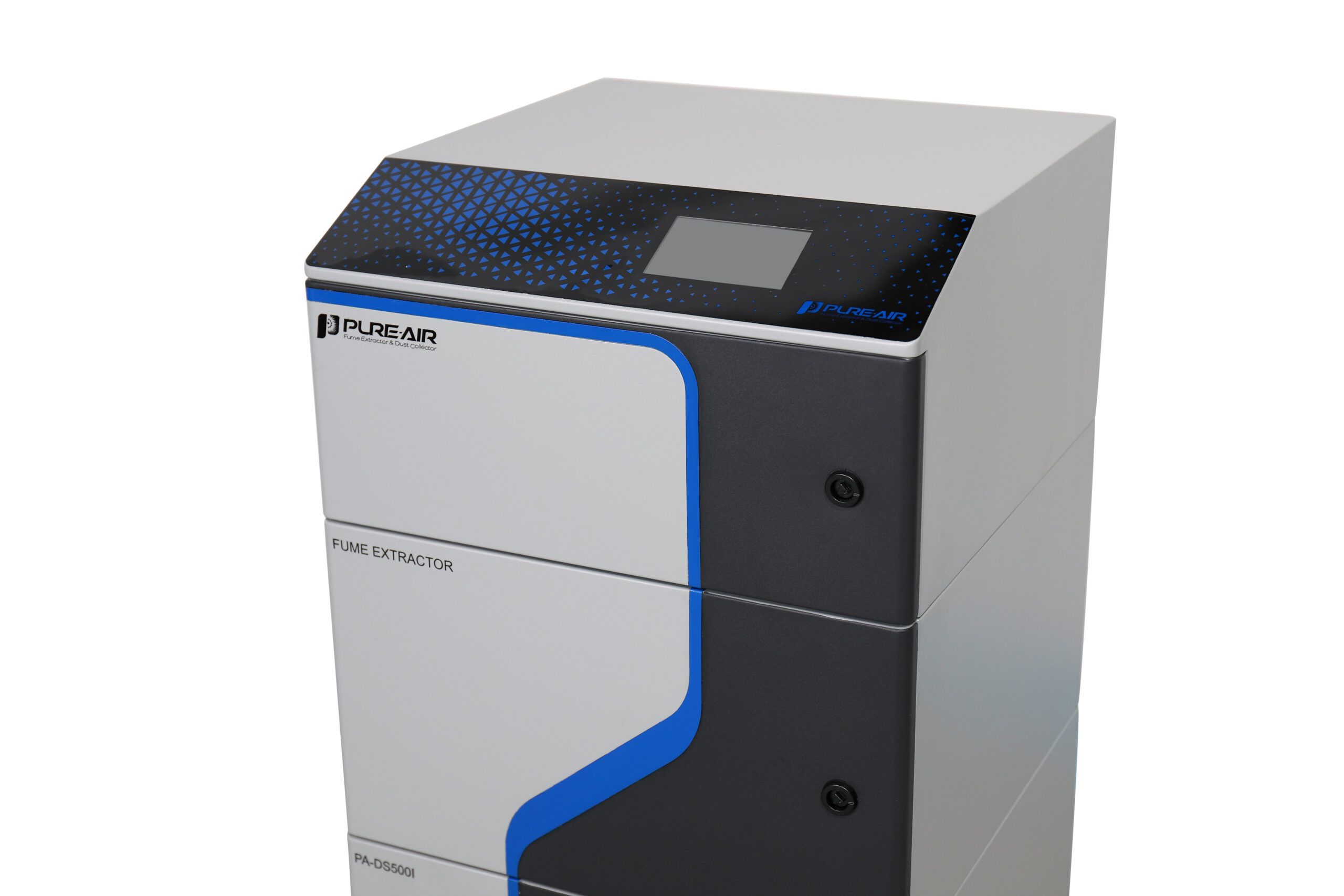

- 7-inch industrial touch screen: real-time display of PM0.3/ozone/temperature and humidity three-dimensional data, automatic alarm when exceeding the standard.
- AI negative pressure algorithm: intelligent identification of filter element status, dynamic adjustment of 10-18KPa suction.
- RS-485 protocol: seamless access to digital factories, purification efficiency linked to production rhythm.
- Long-term economic revolution
- Pulse cleaning technology: automatic backwashing according to system status, cleaning efficiency increased by 320% compared with traditional methods.

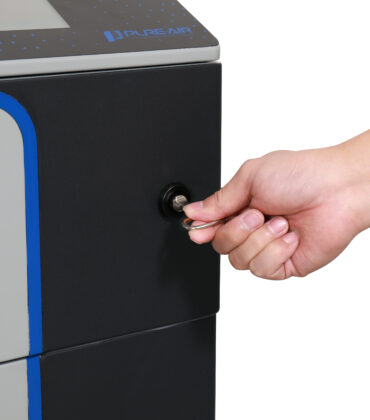

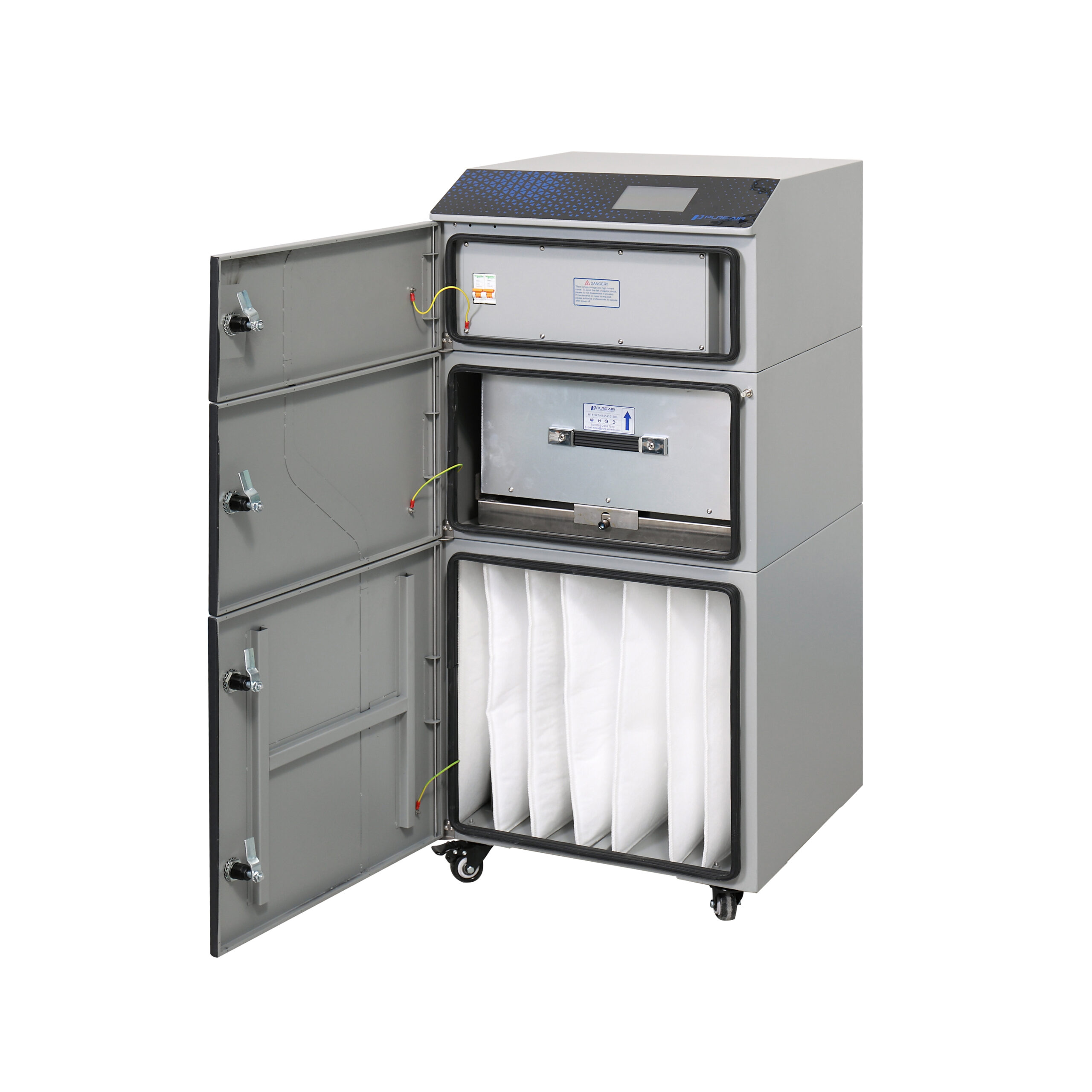

- Quick-release sealing structure: 1 minute core replacement with zero leakage, maintenance cost reduced by 50%
- Cast aluminum volute + aviation-grade alloy impeller: 30,000 hours maintenance-free, noise <50dB.
Table Parameters：
| Model | PA-D800 | PA-D1600 | PA-D2400 | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||

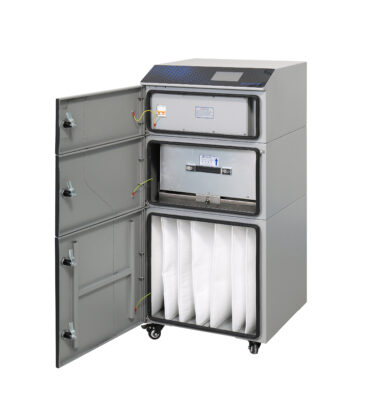

| Filter | Pre filter | Flame retardant PTFE cartridge filter | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Noise level * | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1296mm | 670*794*1570mm | 750*907*1564mm | |
| Weight | 86kg | 180kg | 200kg | |

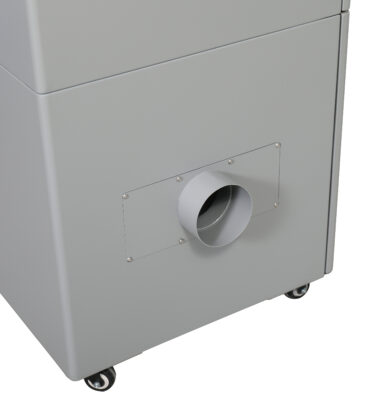

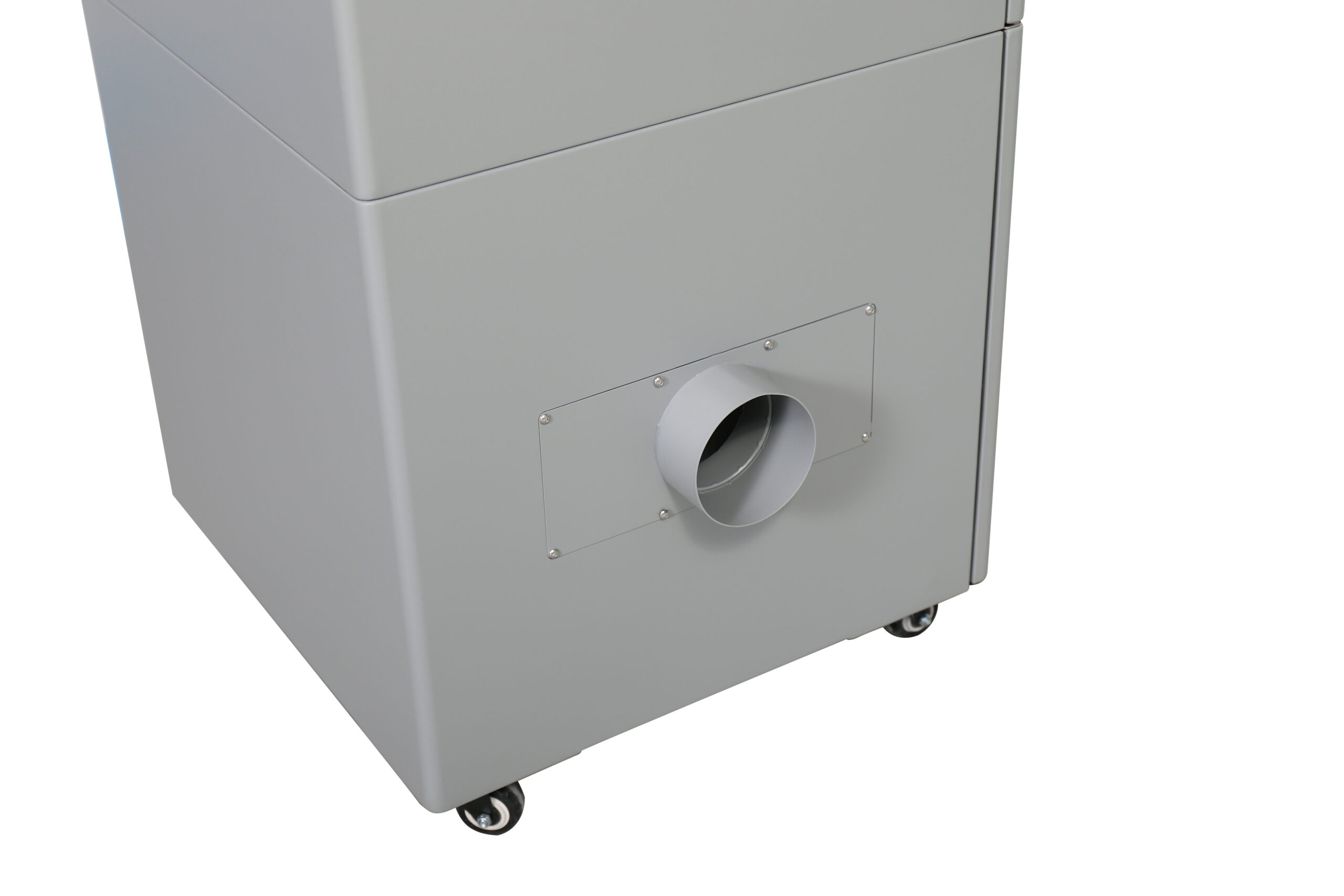

| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
| * At typical operating speed testing data. | ||||
