Carbon fiber smoke purification expert | Military-grade sealing + nano-level purification | [PURE-AIR]

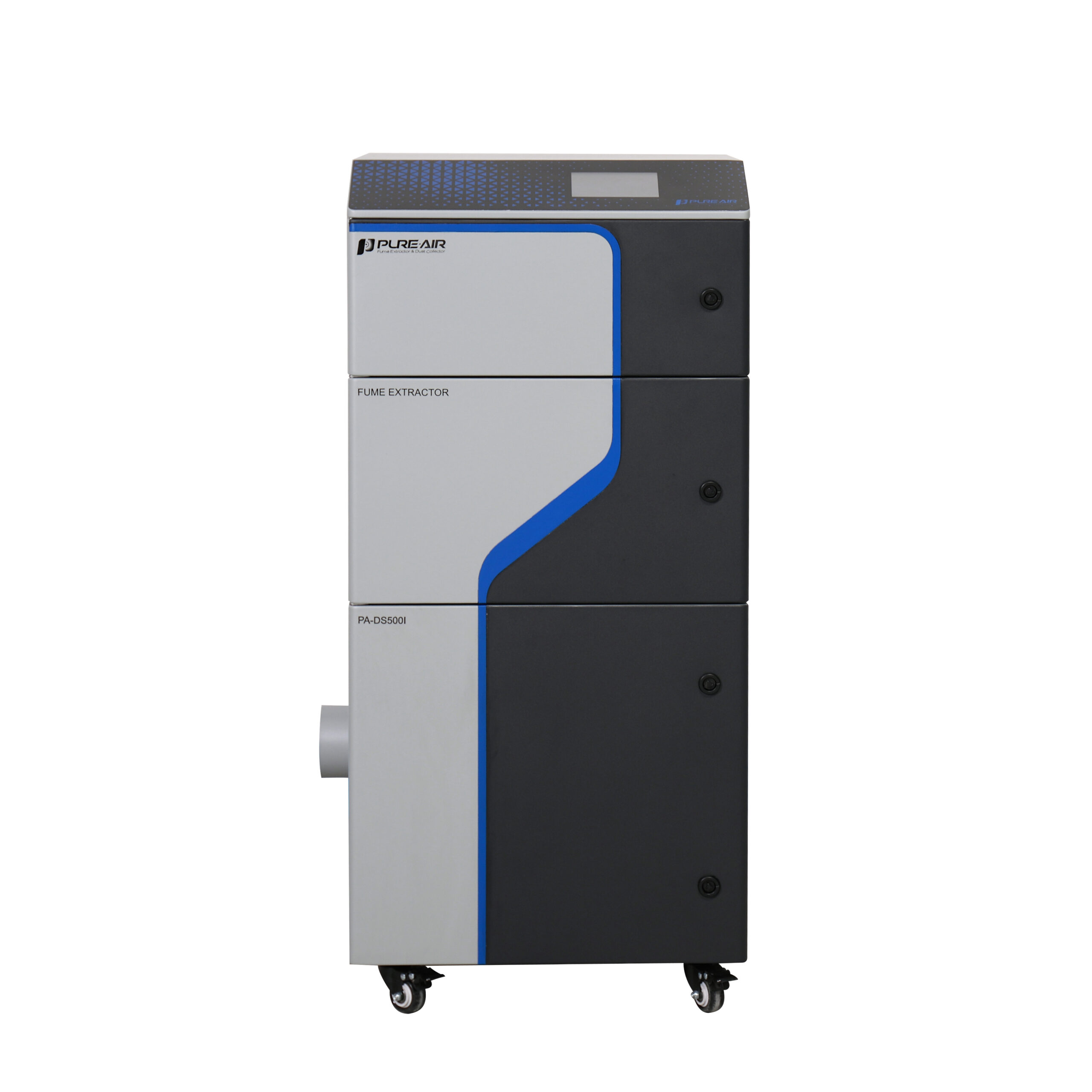

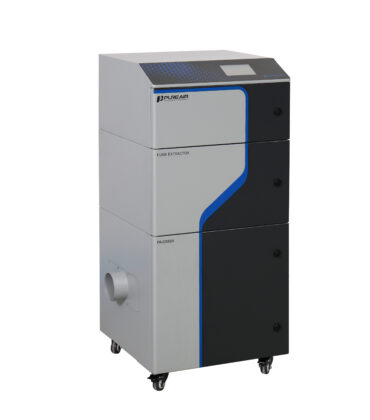

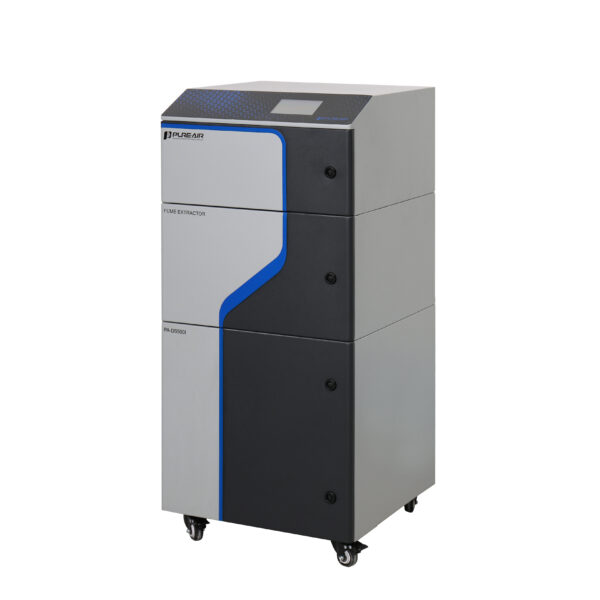

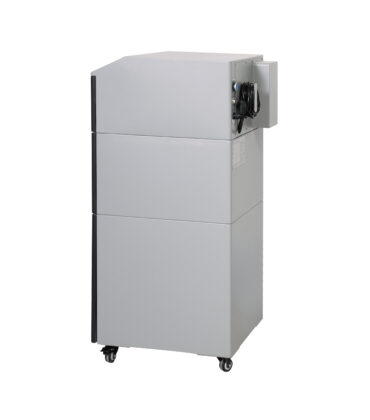

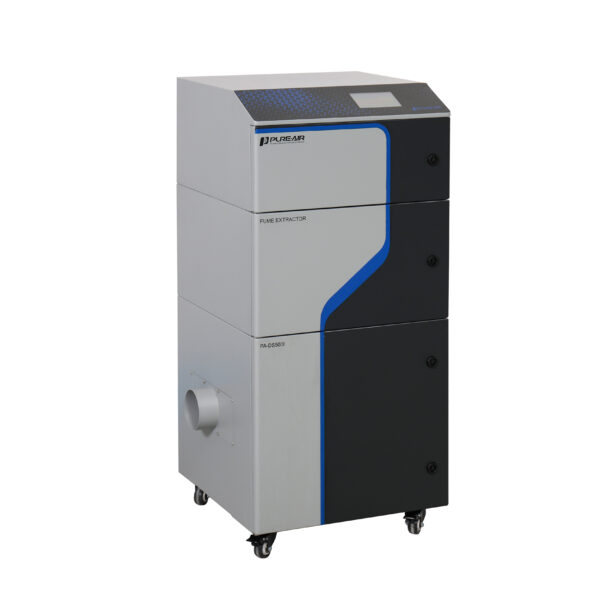

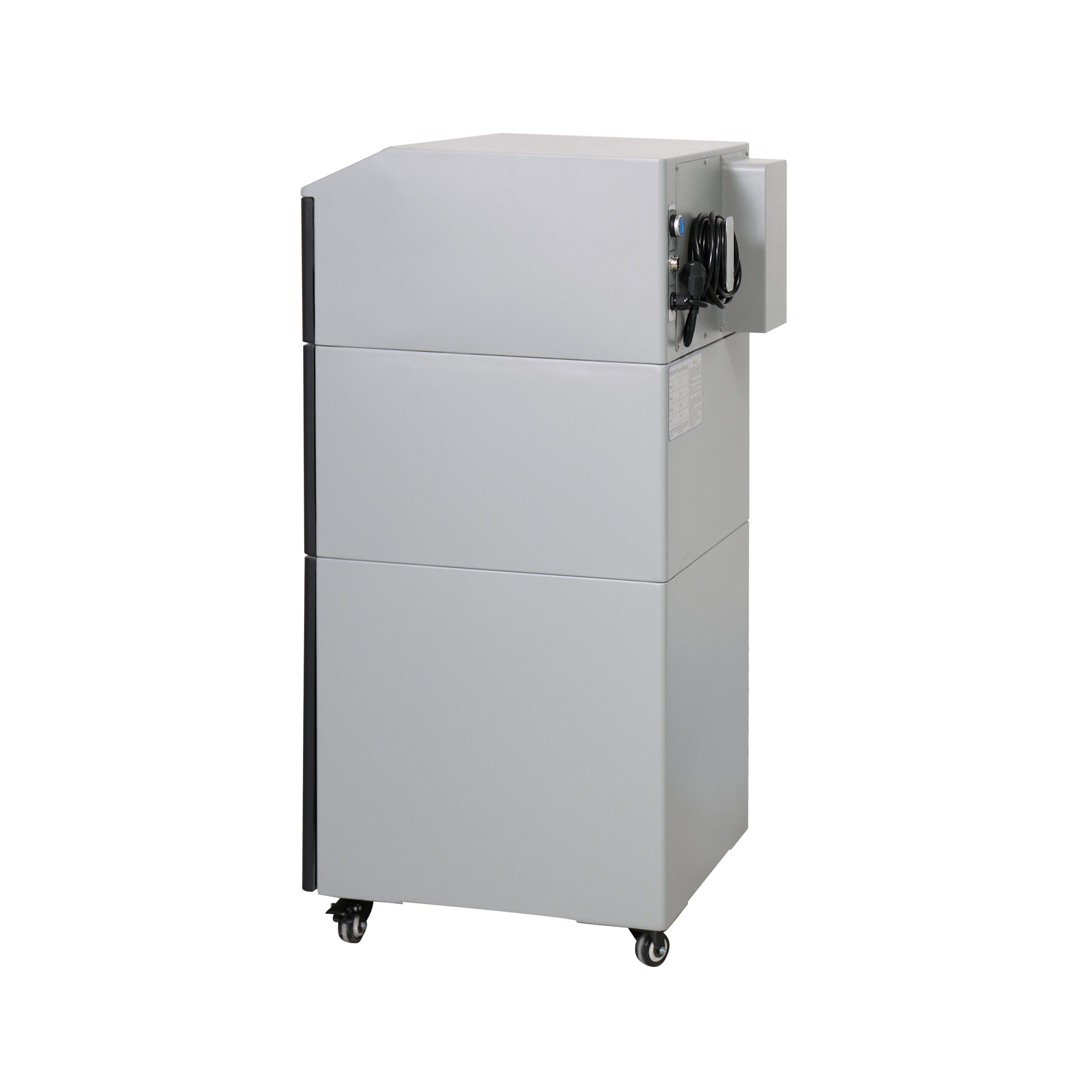

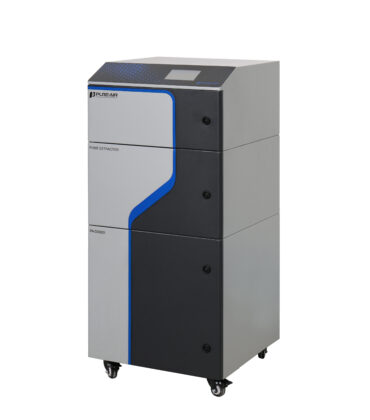

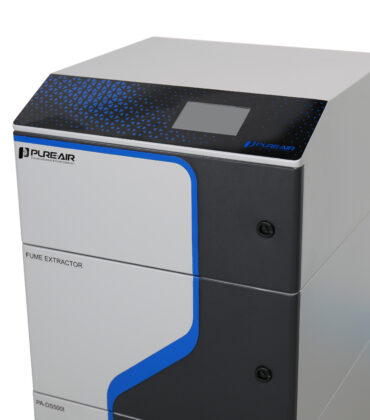

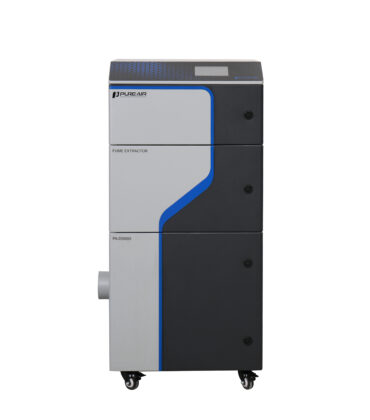

[PURE-AIR] DFS-i series laser smoke odor purification equipment uses 10KPa eddy current negative pressure + nano-level purification filter element to crush 0.1μm carbon powder and benzene carcinogens, with a filtration efficiency of 99.99%, and the workshop air is directly discharged to meet international standards!
Key features
- Nano-level high-precision
purification technology
- H14 high-efficiency filter element + activated carbon and catalyst, efficient filtration of nano-level smoke and deep decomposition of highly toxic gases such as hydrogen cyanide and phenol
- Unique sealing structure: prevent leakage of carbon fiber conductive dust, improve safety
- Space intelligent control
flexible adaptation of production lines
- Small body saves 40% space, supports multi-equipment clusters in aviation/automotive workshops
- Universal casters + quick-release interface, complete high-risk workstation switching in 30 seconds
- AI intelligent control center
full-dimensional protection of high-risk environments

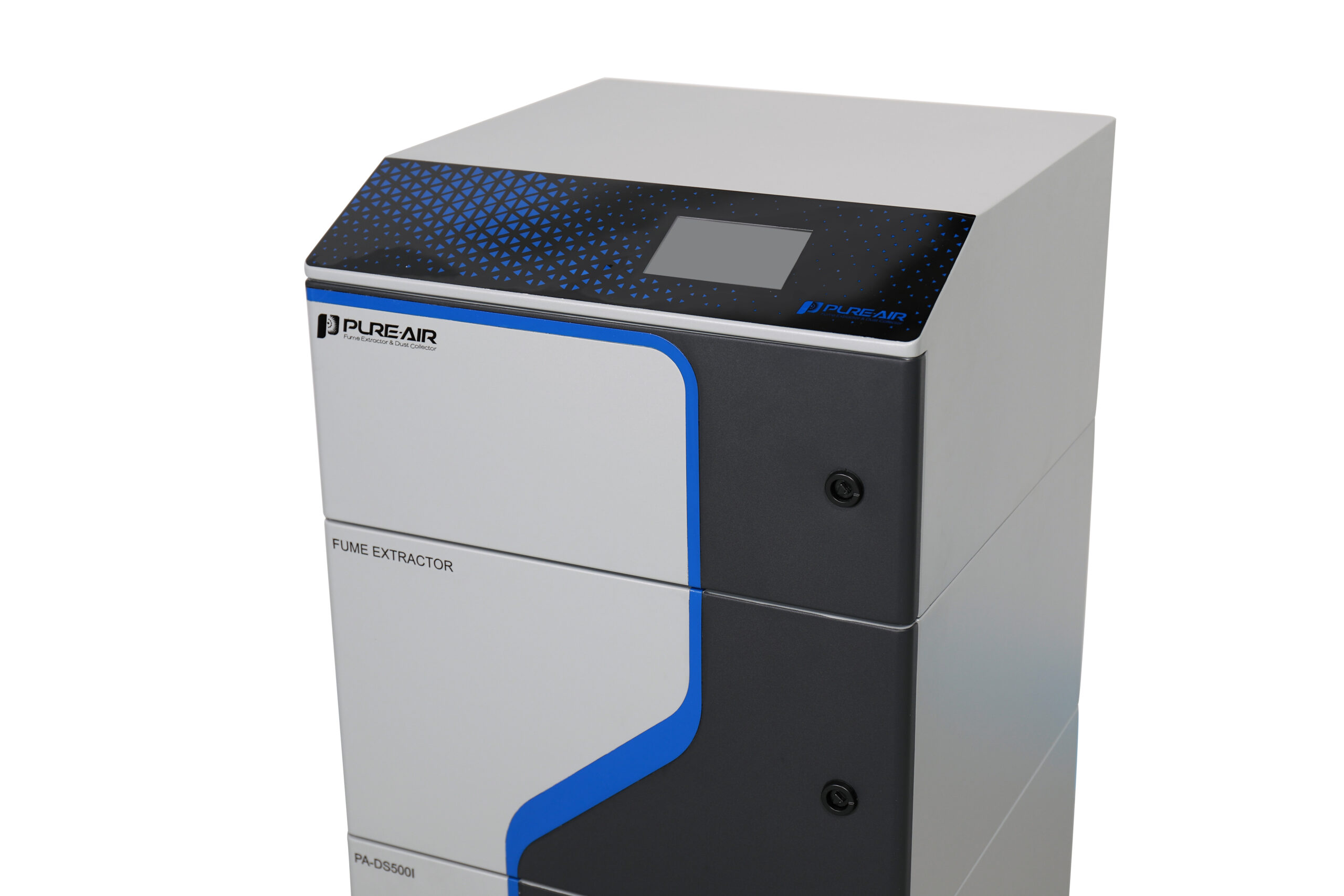

- 7-inch explosion-proof touch screen: real-time monitoring of PM0.1/VOC/temperature and humidity, data docking EPA supervision system
- Self-developed DPS dynamic algorithm: intelligent adjustment of negative pressure (10-18KPa) to cope with intermittent cutting conditions of carbon fiber
- RS-485 communication: seamless integration of intelligent manufacturing platform, purification efficiency linked to production rhythm
Table parameters：
| Model | PA-DFS800i | PA-DFS1600i | PA-DFS2400i | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||
| Filter | Pre filter | Flame retardant PTFE cartridge filter | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Treated activated carbon (Weight 12-30kgs approx) | ||||
| Noise level * | < 62dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1439mm | 670*834*1705mm | 750*907*1698mm | |
| Weight | 121kg | 200kg | 237kg | |
| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
| * At typical operating speed testing data. | ||||
* At typical operating speed testing data.
