Description
Carbon fiber smoke purification expert | Military-grade sealing + nano-level purification | [PURE-AIR]

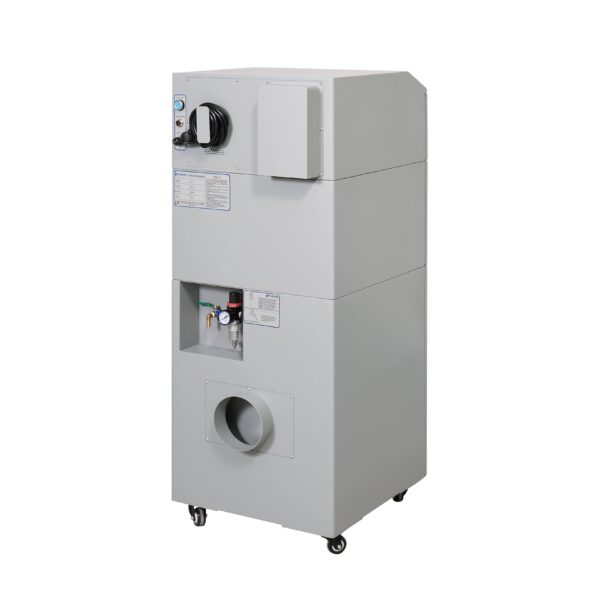

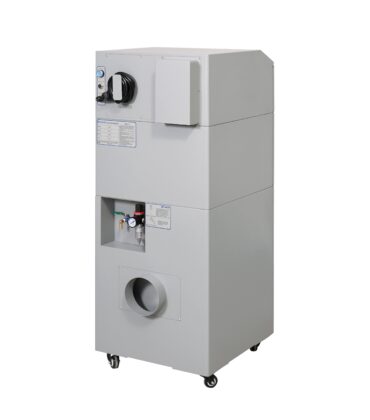

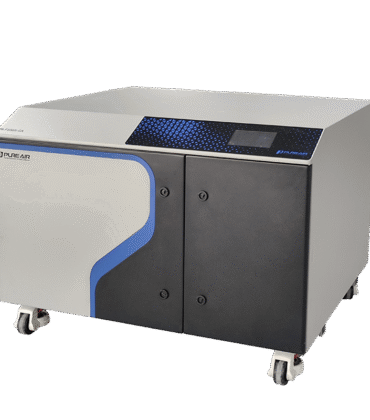

[PURE-AIR] DFS-i series laser smoke odor purification equipment uses 10KPa eddy current negative pressure + nano-level purification filter element to crush 0.1μm carbon powder and benzene carcinogens, with a filtration efficiency of 99.99%, and the workshop air is directly discharged to meet international standards!
Key features
- Overall Design
Smart Manufacturing, Space Revolution — Subvert tradition and reduce space occupancy by 40%!
- Smart purification: Innovative design, compact body, anti-collision and pressure resistance. Narrow workshop, multiple workstations shared, easy to adapt.
- Cleaning power that grows with the production line: Save worry and space, allowing clean productivity to extend freely with the production line, a win-win situation of efficiency and convenience.
- Power System
Super power, intelligent future — 30,000 hours maintenance-free, suction power soars 3 times!
- Vortex supercharging technology: 10 years of research and development, 10-18KPa high negative pressure brushless fan, 0.3 seconds ultra-fast dust collection, energy consumption reduced by 25%.
- Intelligent working condition matching: with intelligent drive control module, real-time matching working condition requirements. Negative pressure purification is strong and does not decay, and the workshop breathing health is protected online 24 hours a day.
- High-strength alloy impeller: professional dynamic balancing correction, the fan runs smoothly and reliably at high speed.
- Special cast aluminum volute: special molded cast aluminum volute, thickness 3MM, isolates high speed noise.
- Control system
Qingfeng Intelligent Purification System, Redefining Purification — We solve all the problems that traditional purifiers cannot do!
- Industrial-grade touch control center: data is clearly visible, parameters are controlled with one click, and the production rhythm is at your fingertips.
- Full-scene intelligent interconnection: I/O, RS-485 and other communication ports are covered, and smart workshop control is seamlessly connected.
- Real-time display of air volume: accurate sensors and intelligent algorithms, real-time display of air volume/negative pressure, say goodbye to traditional analog data.
- Hengjing Black Technology: Automatically compensate air volume when the filter element is blocked. The smoking effect is always the same, and there is no smoke and dust in the workshop.
- Air quality guard: Optional PM2.5/VOC/O3/HCL/Odor sensors for real-time monitoring, exhaust quality is clear at a glance, and environmental protection compliance is worry-free.
- Filter health butler: Accurate display and early warning of the status of each layer of filter element, intelligent reminder of replacement time, zero risk of downtime.
- Double safety insurance: Automatic shutdown when temperature and humidity exceed the standard, eliminating the hidden dangers of fire/filter damage.
- Evolutionary system: One-click upgrade, continuous performance optimization, the equipment is always one step ahead.
- Purification system
Multi-layer purification, worry-free direct discharge — Consumables costs are reduced by 50%, and life is extended by 30%!
- 3 times the filter area: The filter surface area reaches 10-30 square meters, and the smoke and dust capacity is 3 times larger.
- Progressive purification system: large particles, fine dust, and harmful gases are broken layer by layer, so that efficient production and employee health have zero conflict, and indoor direct discharge is pollution-free.
- Quick-disassembly design: 1 minute to change the core, full air tightness, and maintenance costs are further reduced.
Table parameters：
| Application conditions | Processing materials | Laser cutting: Carbon fiber and composite materials such as CFRP and CMC, etc. | ||
| Working format | 80*100cm | 90*130cm, 100*160cm | 90*130cm, 100*160cm | |
| Model | PA-DFS800i | PA-DFS1600i | PA-DFS2400i | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||
| Filter | Pre filter | Flame retardant PTFE cartridge filter | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Treated activated carbon (Weight 12-30kgs approx) | ||||
| Noise level * | < 62dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1439mm | 670*834*1705mm | 750*907*1698mm | |
| Weight | 121kg | 200kg | 237kg | |
| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
* At typical operating speed testing data.
