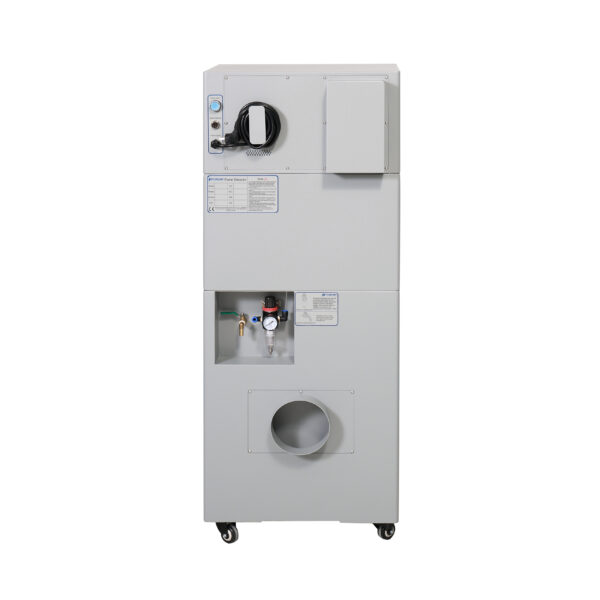

Carbon fiber smoke purification equipment | Pulse cleaning + 99.99% filtration | [PURE-AIR]
Equipped with -9600Pa brushless fan and patented pulse back-blowing system, 0.3 micron particle filtration efficiency is 99.99%, efficient interception of carbon fiber dust and benzene-type harmful gases, direct exhaust of workshop air without external connection!
Solution to end industry pain points
- Pulse cleaning black technology
- Original high-frequency pulse backflush technology, automatically removes dust from filter cartridges, and improves cleaning efficiency by 300% compared to traditional methods.
- Anti-adhesion coating filter element, resists carbon fiber oily smoke clogging, and extends life by 2 times.
- Military-grade triple purification
- Large air volume and strong adsorption, multi-stage filtration, deep decomposition of formaldehyde, benzene and other carcinogens, purification rate exceeds national standards by 3 times!
- Smart and worry-free + ultra-low maintenance
- 7-inch touch screen monitors air volume/pressure difference in real time, 10-speed speed adjustment to adapt to laser machines of different powers.
- Filter element blockage sound and light + remote dual warning, precise filter element replacement reminder.
- Standard industrial-grade I/O interface, remote start and stop of linkage cutting equipment.
- Hardcore advantages
- Compact design + heavy-duty casters, one person can move and deploy, noise <60dB.
- Titanium alloy bearing brushless motor, 35,000 hours of ultra-long life, 24/7 continuous operation.
- Modular filter element independent replacement, operation and maintenance costs reduced by 55%.
[PURE-AIR]——Make high-risk smoke purification smarter!
Table Parameters：
| Model | PA-DFS800 | PA-DFS1600 | PA-DFS2400 | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||
| Filter | Pre filter | Flame retardant PTFE cartridge filter | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Treated activated carbon (Weight 12-30kgs approx) | ||||
| Noise level * | < 62dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1439mm | 670*834*1705mm | 750*907*1698mm | |
| Weight | 121kg | 200kg | 237kg | |
| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
| * At typical operating speed testing data. | ||||
