Description
Smart Solution for Unmanned Laser Systems

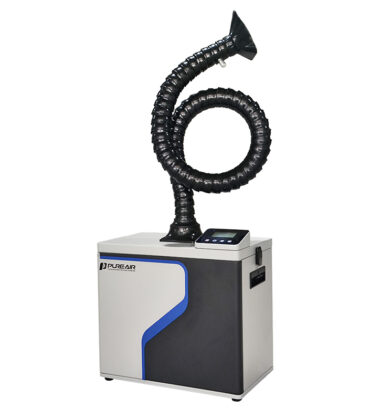

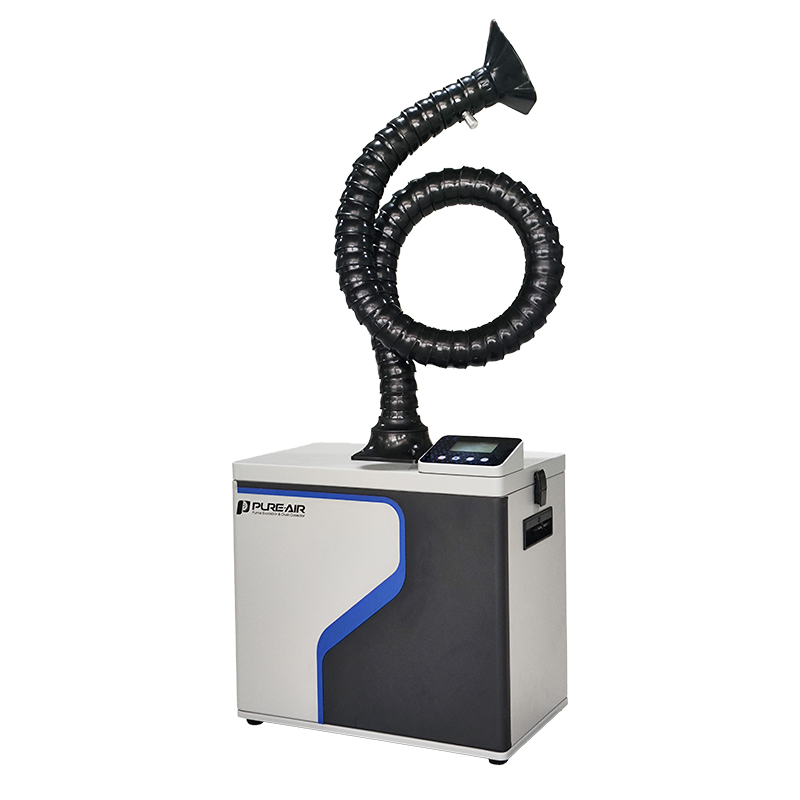

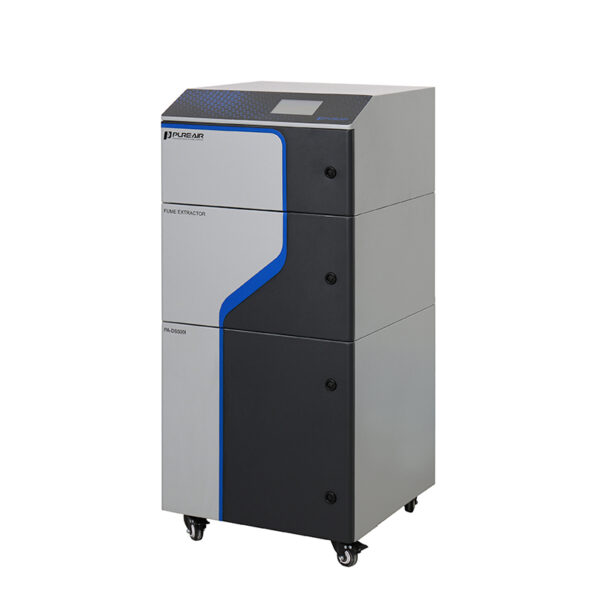

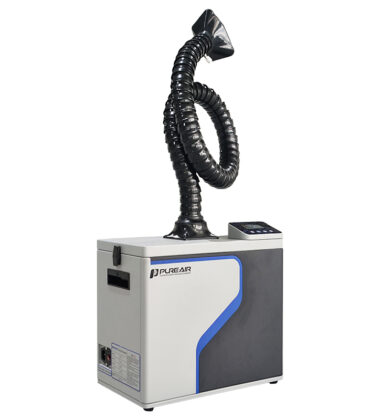

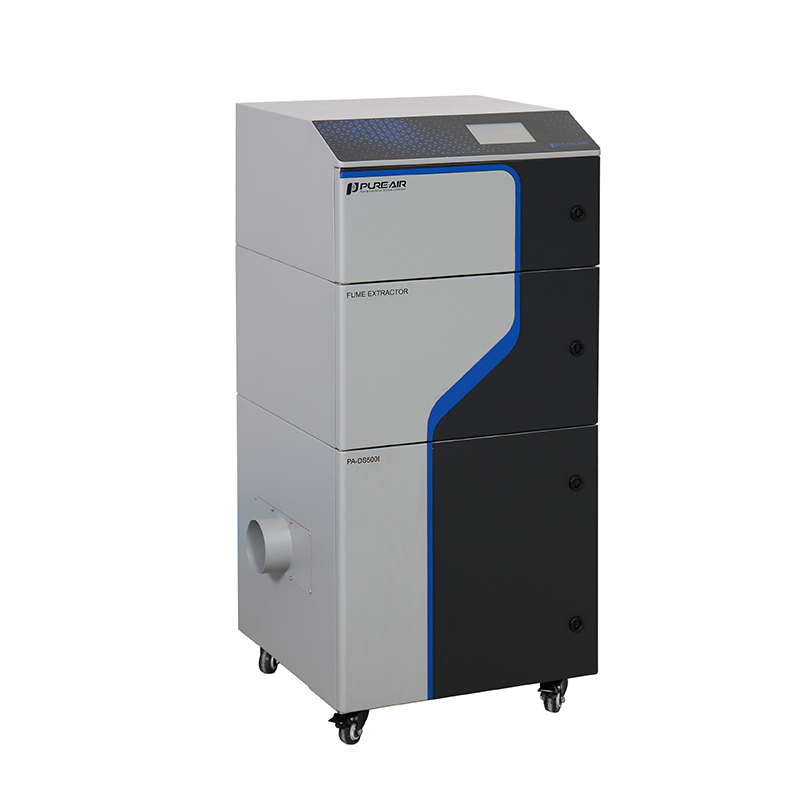

The DS-i Series laser marking fume extractor ensures clean and safe air during continuous laser marking. It uses multi-stage filtration to remove fine particles and harmful fumes. The compact unit fits easily into automatic production lines. Engineers trust it to protect workers and machines in harsh conditions. Its design improves operational safety and complies with global air quality standards.
Intelligent Monitoring and Touch Control Panel
Operators monitor system status through a user-friendly touch screen. It displays real-time airflow, filter usage, and warning messages. The control interface is intuitive, allowing users to adjust settings quickly. A built-in sensor tracks pressure changes to ensure filter accuracy. System alerts are transmitted immediately, helping managers avoid unplanned downtime.
Remote Management Enhances Efficiency
The DS-i system supports remote operation and diagnostics. Engineers can connect the extractor to a central control system. When an issue occurs, the system sends alerts instantly. This reduces human error and increases automation efficiency. Users control fan speed and check filter status remotely to streamline production.
Built for Long-Term Performance
The fume extractor features a durable shell and long-lasting filters. It withstands high-duty cycles and handles various industrial fumes. Users install it easily beside laser machines. The system requires low maintenance and offers stable air purification for years. It supports laser coding, engraving, and marking lines with high output needs.
Key features
- Overall Design
Smart Manufacturing, Space Revolution — Subvert tradition and reduce space occupancy by 40%!
- Smart purification: Innovative design, compact body, anti-collision and pressure resistance. Narrow workshop, multiple workstations shared, easy to adapt.
- Cleaning power that grows with the production line: Save worry and space, allowing clean productivity to extend freely with the production line, a win-win situation of efficiency and convenience.
- Power System
Super power, intelligent future — 30,000 hours maintenance-free, suction power soars 3 times!
- Vortex supercharging technology: 10 years of research and development, 10-18KPa high negative pressure brushless fan, 0.3 seconds ultra-fast dust collection, energy consumption reduced by 25%.
- Intelligent working condition matching: with intelligent drive control module, real-time matching working condition requirements. Negative pressure purification is strong and does not decay, and the workshop breathing health is protected online 24 hours a day.
- High-strength alloy impeller: professional dynamic balancing correction, the fan runs smoothly and reliably at high speed.
- Special cast aluminum volute: special molded cast aluminum volute, thickness 3MM, isolates high speed noise.
- Control system
Qingfeng Intelligent Purification System, Redefining Purification — We solve all the problems that traditional purifiers cannot do!
- Industrial-grade touch control center: data is clearly visible, parameters are controlled with one click, and the production rhythm is at your fingertips.
- Full-scene intelligent interconnection: I/O, RS-485 and other communication ports are covered, and smart workshop control is seamlessly connected.
- Real-time display of air volume: accurate sensors and intelligent algorithms, real-time display of air volume/negative pressure, say goodbye to traditional analog data.
- Hengjing Black Technology: Automatically compensate air volume when the filter element is blocked. The smoking effect is always the same, and there is no smoke and dust in the workshop.
- Air quality guard: Optional PM2.5/VOC/O3/HCL/Odor sensors for real-time monitoring, exhaust quality is clear at a glance, and environmental protection compliance is worry-free.
- Filter health butler: Accurate display and early warning of the status of each layer of filter element, intelligent reminder of replacement time, zero risk of downtime.
- Double safety insurance: Automatic shutdown when temperature and humidity exceed the standard, eliminating the hidden dangers of fire/filter damage.
- Evolutionary system: One-click upgrade, continuous performance optimization, the equipment is always one step ahead.
- Purification system
Multi-layer purification, worry-free direct discharge — Consumables costs are reduced by 50%, and life is extended by 30%!
- 3 times the filter area: The filter surface area reaches 10-30 square meters, and the smoke and dust capacity is 3 times larger.
- Progressive purification system: large particles, fine dust, and harmful gases are broken layer by layer, so that efficient production and employee health have zero conflict, and indoor direct discharge is pollution-free.
- Quick-disassembly design: 1 minute to change the core, full air tightness, and maintenance costs are further reduced.
Table parameters：
| Application conditions | Processing materials | Laser marking / coding: metal and some plastic materials (Stainless steel, Plastics, Cartons, PET, PC, PCB, Chips, etc.). | ||||
| Working format | Product line | |||||
| Model | PA-DS400i | PA-DS500i | PA-DS800i | PA-DS1600i | PA-DS2400i | |
| Airflow | 400m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 8000Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.0kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||||
| Filter | Pre filter | F9 accordion filter bag (95%@0.9um) | ||||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||||
| Treated activated carbon (Weight 12-30kgs approx) | ||||||
| Noise level * | < 58dBA | < 60dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 450*482*941mm | 550*562*1091mm | 720*769*1389mm | 800*907*1374mm | ||
| Weight | 45kg | 72kg | 50kg | 164.5kg | 175kg | |
| Inlet size | 50mm / 75mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
* At typical operating speed testing data.
