Description

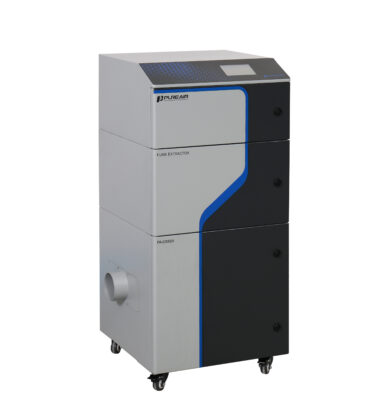

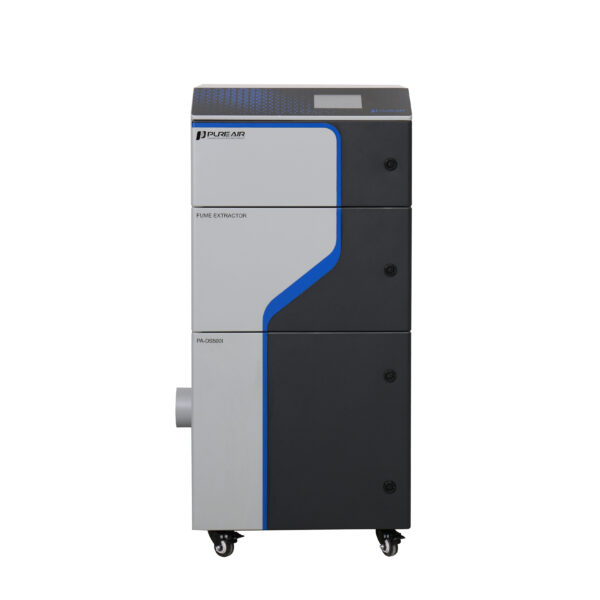

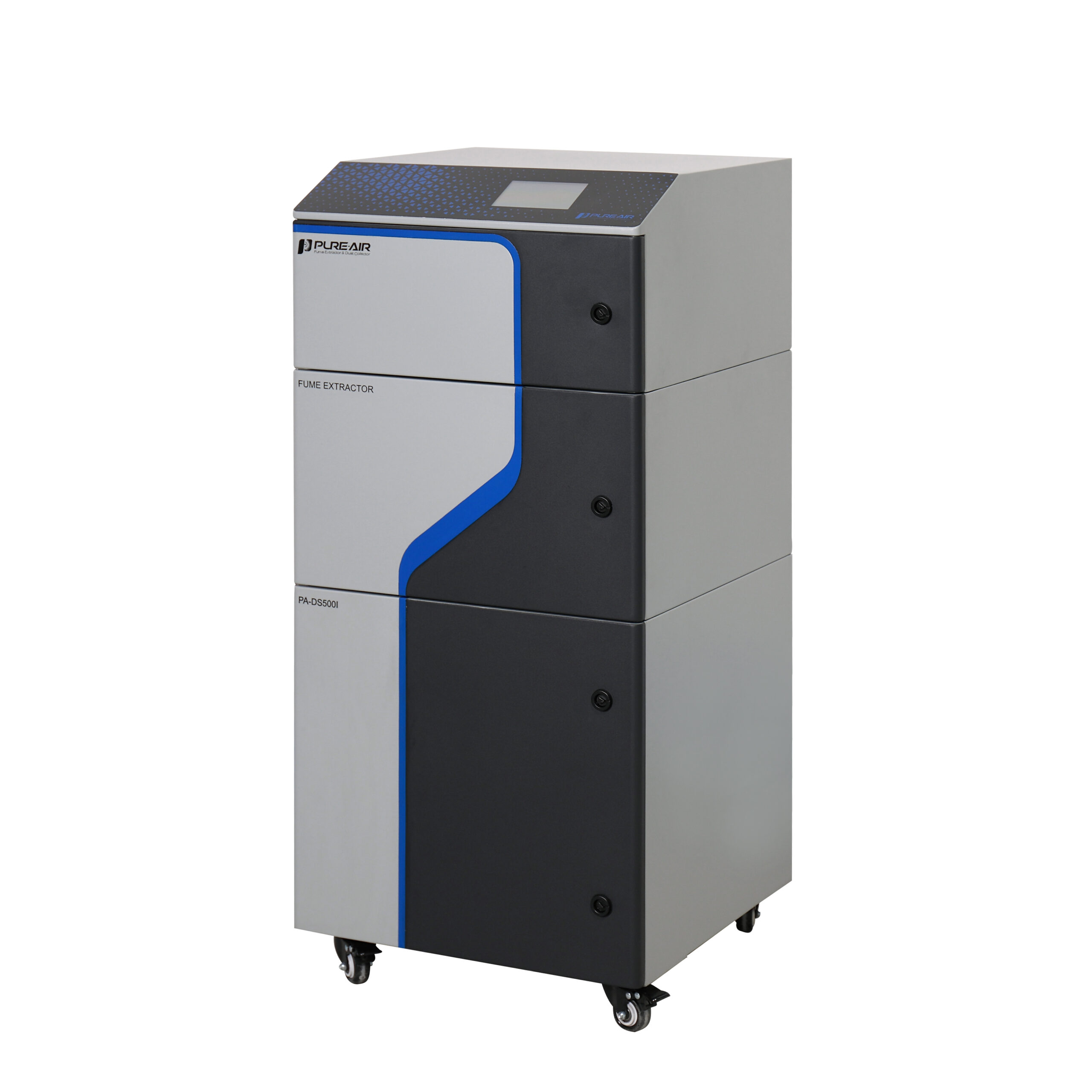

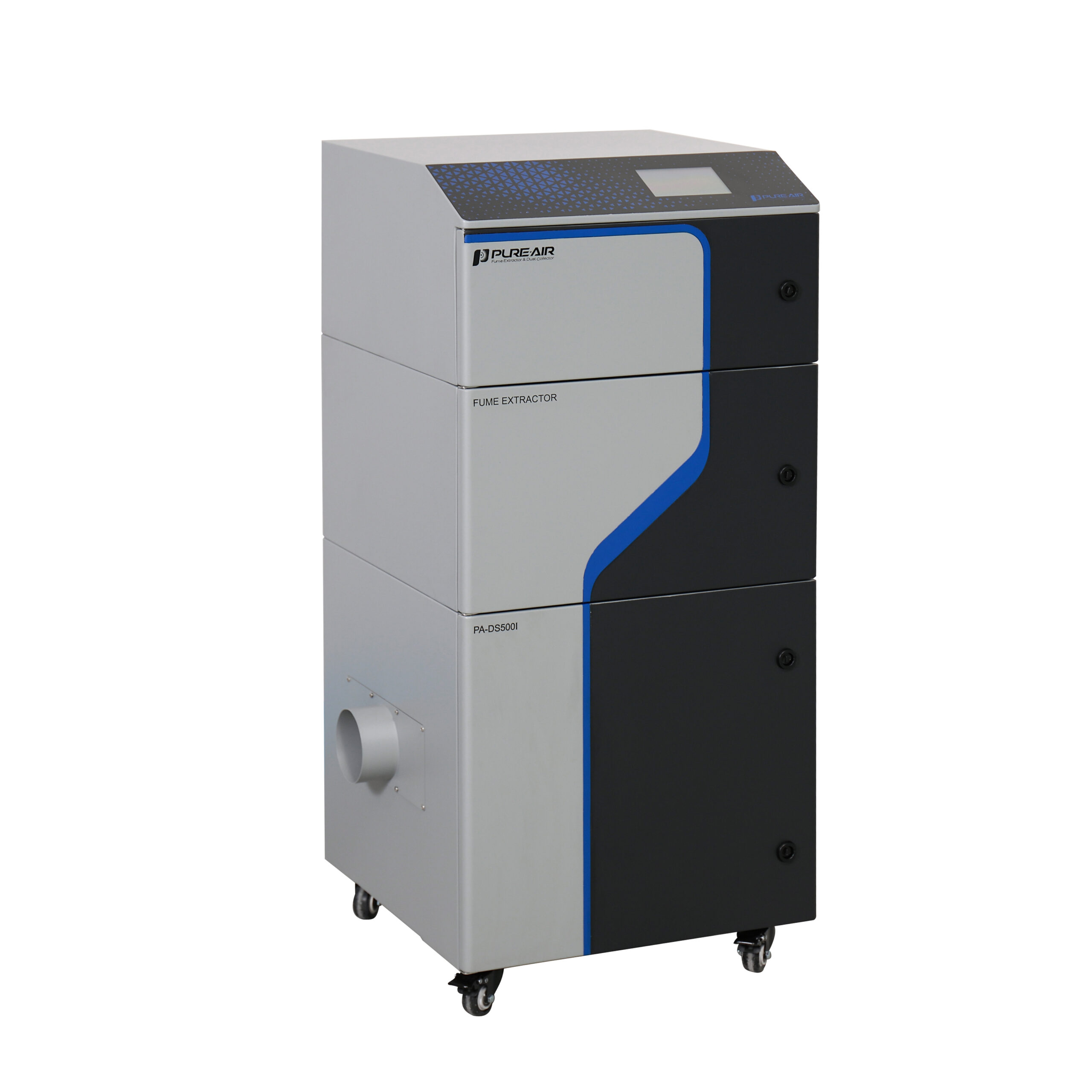

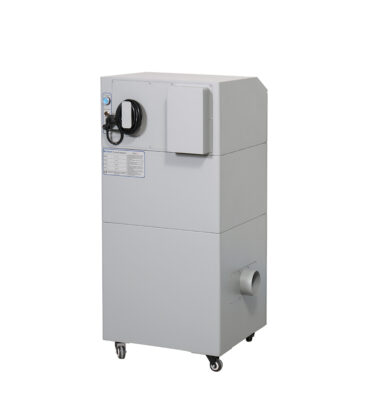

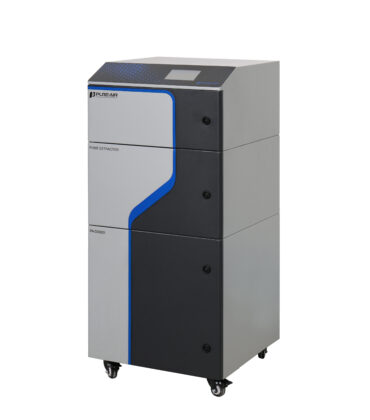

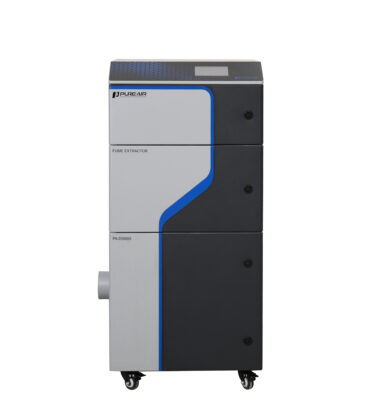

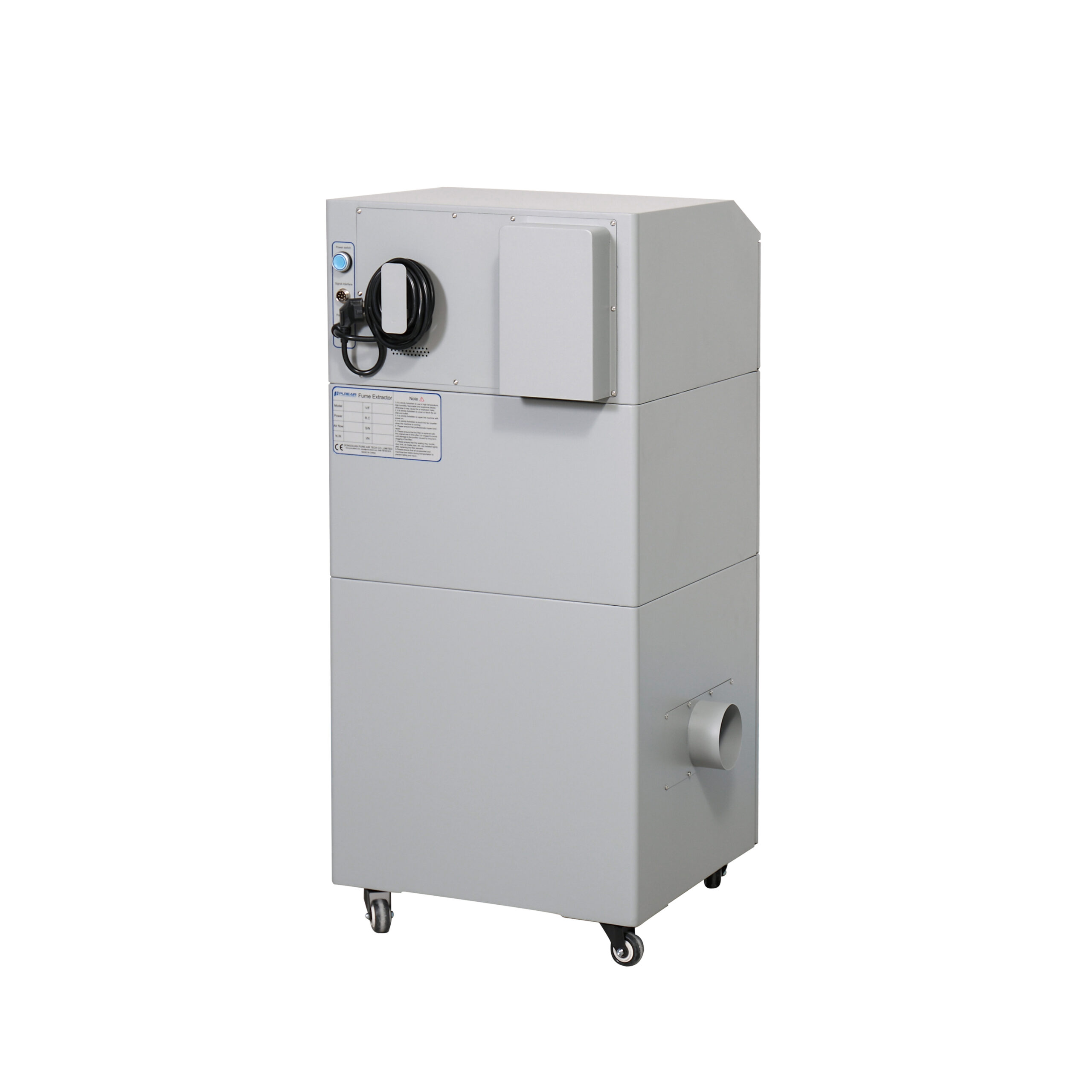

High-efficiency sticky smoke purification equipment | Patented pulse cleaning + 99.9% filtration | [PURE-AIR]
Equipped with -9600Pa brushless fan and patented pulse cleaning system, 0.3 micron particle filtration efficiency is 99.9%, solving the pain point of high-sticky dust blockage, and the workshop air is directly discharged without worry!
Disruptive technical highlights
- Sticky dust killer
pulse cleaning + mineral powder pre-filtration
- The original mineral powder pre-filtration layer absorbs grease and smoke, reducing the load on the filter element.
- The pulse backwash cleaning system automatically cleans the filter cartridge, which is 300% more efficient than traditional methods.
- Three-stage long-term purification
- Large air volume and strong suction, three-stage filtration ensures that the filter element life is extended by 3 times, and sticky smoke, VOCs, formaldehyde and other harmful gases are all caught!
- Intelligent system
Intelligent and worry-free operation and maintenance
- LCD screen monitors air volume/pressure difference in real time, 10-speed speed adjustment is suitable for engraving and cutting scenes.
- Filter element blockage sound and light + remote dual warning, accurately prompt maintenance time.
- Standard linkage interface, seamless docking laser equipment remote start and stop.
- Super value advantage
- Compact body + industrial casters, mobile deployment as fast as 3 minutes, noise as low as 62dB.
- Military-grade brushless motor, 30,000 hours of ultra-long life, 80% lower failure rate.
- Independent filter element replacement design, operation and maintenance costs reduced by 50%.
Table Parameters：
| Model | PA-FGS800 | PA-FGS1600 | PA-FGS2400 | |
| Airflow | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||
| Filter | Pre filter | PTFE cartridge filter with natural mineral powder | ||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||
| Treated activated carbon (Weight 12-30kgs approx) | ||||
| Noise level * | < 62dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 500*597*1439mm | 670*834*1705mm | 750*907*1698mm | |
| Weight | 128kg | 210kg | 241kg | |
| Inlet size | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||
| * At typical operating speed testing data. | ||||
