Description

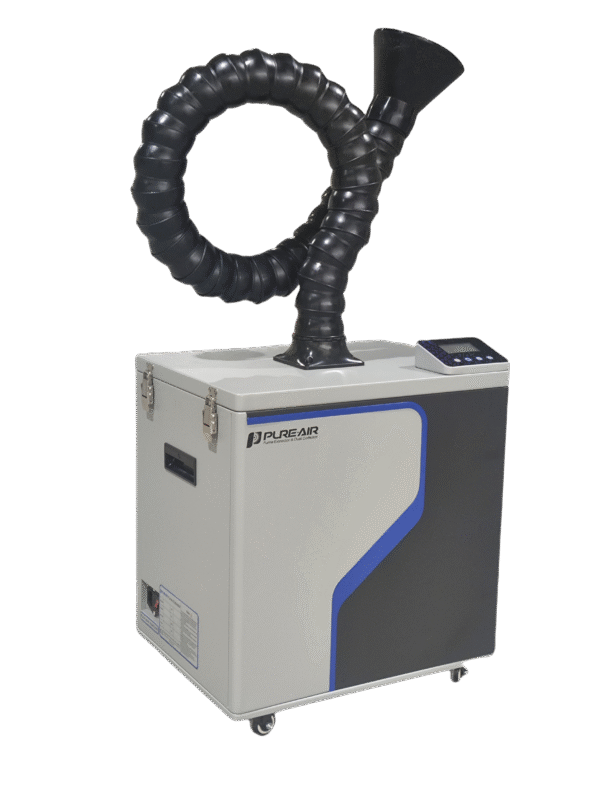

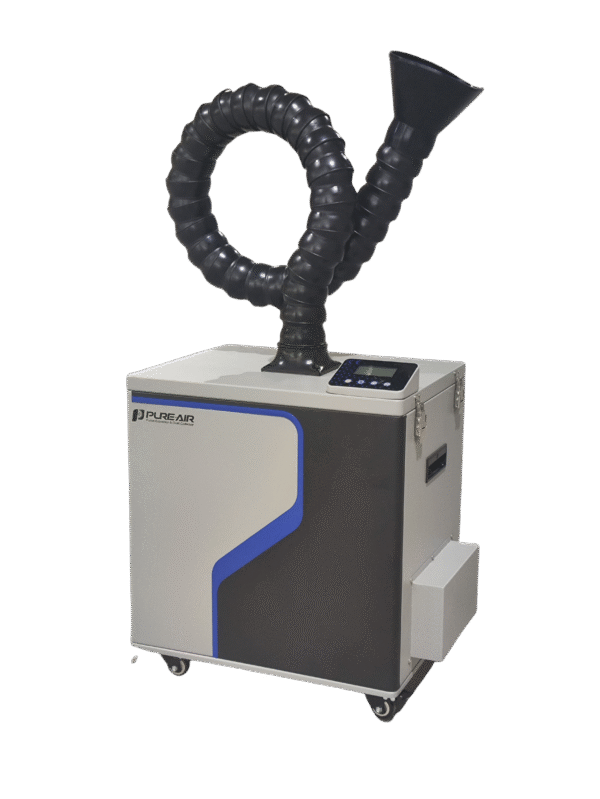

【PURE-AIR】Laser smoke purification equipment | Space saving 40% + 99.99% filtration | Intelligent purification
Equipped with ultra-high negative pressure + intelligent purification system, compact body, multi-layer purification and direct exhaust without worries!
Core advantages
- Space revolution
40% space saving + multi-scenario adaptation
- Ultra-thin anti-collision body, supports multiple equipment sharing in narrow workshops
- Heavy-duty casters for flexible movement, 5 seconds to switch workstations
- Super power
30,000 hours maintenance-free
- Vortex booster brushless fan: 10-18KPa super negative pressure, 0.3 seconds extremely fast dust collection, suction increased by 300%
- Cast aluminum noise reduction volute: 3mm sound insulation layer, reduce fan noise
- Purification black technology
consumables cost directly reduced by 50%
- 3 times dust capacity filter: 10-30㎡ filtration area, life extended by 30%
- Quick-detachable multi-layer purification (pre-filtration → HEPA dust lock → activated carbon detoxification), 1 minute core replacement airtight and lossless
- Constant net compensation technology: automatic boost when the filter is blocked, the smoking effect is consistent
- Smart center
full control of workshop purification
- 7-inch industrial touch screen: real-time display of air volume/negative pressure/PM2.5/VOC data
- Dual warning system: filter life reminder + automatic shutdown when temperature and humidity exceed the standard
- RS-485/I/O multi-interface: seamless linkage of laser equipment, support 24-hour unattended operation
Table Parameters
| Model | PA-FS400i | PA-FS500i | PA-FS800i | PA-FS1600i | PA-FS2400i | |
| Airflow | 400m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 8000Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 1.0kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||
| Control system | PURE-AIR INTELLIGENT PURIFICATION SYSTEM (PIPS) | |||||
| Air quality sensor (Optional) | PM1.0 / VOC / HCL / O3 / Odor | |||||
| Filter | Pre filter | F9 deeppleat filter (95%@0.9um, surface media area 12m² – 30m² approx) | ||||
| Main filter | 545.642.646.794.577H14 deeppleat filter (99.997% @0.3um) | |||||
| Treated activated carbon (Weight 12-30kgs approx) | ||||||
| Noise level * | < 58dBA | < 60dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 560*310*635mm | 500*562*1040mm | 670*769*1356mm | 750*907*1341mm | ||
| Weight | 35kg | 83kg | 86kg | 185kg | 205kg | |
| Inlet size | 75mm / 100mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
| * At typical operating speed testing data. | ||||||
