Description

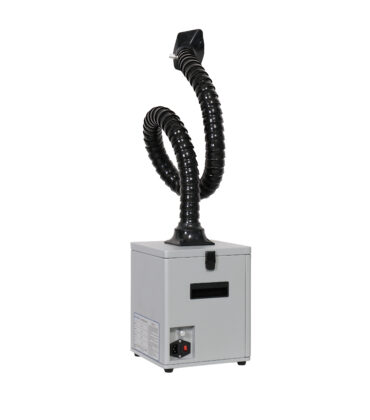

High-efficiency laser fume extractor | 99.99% filtration + intelligent energy saving | [PURE-AIR] Equipped with a 9600Pa high-negative pressure brushless fan and a three-stage filtration system, the purification efficiency of 0.3 micron particles reaches 99.99%, supporting indoor safe emissions and protecting the healthy environment of the workshop.
Key features
- Super strong adsorption
precise purification
- Large air volume and high negative pressure quickly capture diffused smoke, and the three-stage filter element (medium-efficiency interception → HEPA filtration → activated carbon adsorption) deeply purifies harmful gases such as PVC to prevent secondary pollution.
- Intelligent control
worry-free and labor-saving
- LCD screen monitors air volume/gear in real time, 10 gears are adjusted to suit different working conditions
- Dual warning of filter element blockage (sound and light alarm + remote push), replacement reminder without delay
- Standard remote interface, one-button start and stop of linkage production line, improving efficiency
- Flexible and durable
direct cost reduction
- Compact body + industrial casters, quick deployment in 5 minutes, noise as low as 65dB
- Military-grade brushless motor, 30,000 hours maintenance-free
Independent filter element replacement design, operation and maintenance cost savings of 40%
Table parameters：
| Application conditions | Processing materials | Laser cutting/engraving: paper, acrylic, leather, fabric and other materials. | ||||
| Working format | 30*40cm, 30*50cm | 40*60cm, 80*100cm | 90*130cm | 100*160cm | 130*250cm | |
| Model | PA-FS300 | PA-FS500 | PA-FS800 | PA-FS1600 | PA-FS2400 | |
| Airflow | 300m³/hr | 500m³/hr | 800m³/hr | 1600m³/hr | 2400m³/hr | |
| Pressure | 3700Pa | 10000Pa | 10000Pa | 10000Pa | 10000Pa | |
| Rated power | 0.35kw | 1.1kw | 1.3kw | 2.3kw | 3.5kw | |
| Input voltage / Frequency | 90v-110v / 210-257v, 1ph, 50/60Hz | |||||
| Filter | Pre filter | F9 deeppleat filter (95%@0.9um, surface media area 12m² – 30m² approx) | ||||
| Main filter | H14 deeppleat filter (99.997% @0.3um) | |||||
| Treated activated carbon (Weight 12-30kgs approx) | ||||||
| Noise level * | < 58dBA | < 60dBA | < 63dBA | < 65dBA | < 68dBA | |
| Dimensions (W*D*H) | 560*310*635mm | 500*562*1040mm | 670*769*1356mm | 750*907*1341mm | ||
| Weight | 35kg | 83kg | 86kg | 185kg | 205kg | |
| Inlet size | 50mm / 75mm | 75mm / 100mm | 100mm / 125mm | 150mm | 200mm | |
| Cabinet construction | Powder coated mild steel / Brushed stainless steel | |||||
* At typical operating speed testing data.
